1050611-1

Active

TE Connectivity AMP Connectors

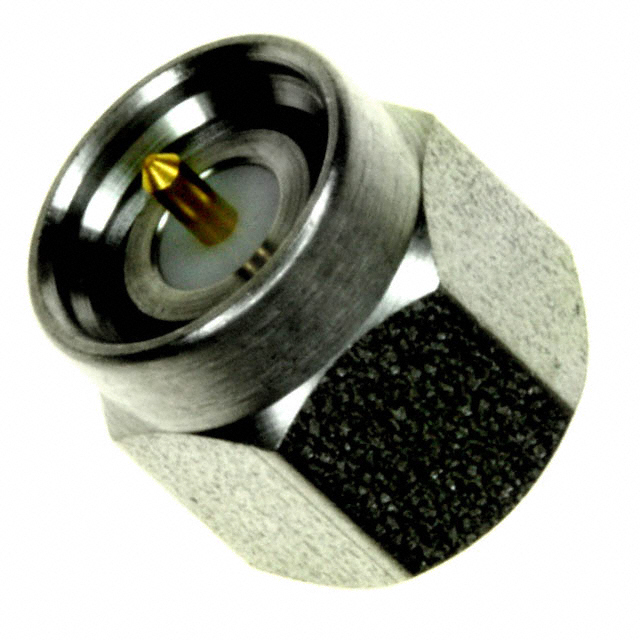

CONN SMA PLUG STR 50 OHM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMA PLUG STR 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1050611-1

Body Material	Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	375 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN SMA PLUG STR 50 OHM

Part	Housing Color	Center Contact Material	Connector Style	Voltage Rating	Connector Type	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Center Contact Plating	Mounting Type	Dielectric Material	Frequency - Max [Max]	Mating Cycles	Cable Group	Impedance	Body Material
TE Connectivity AMP Connectors 1050611-1	Silver	Beryllium Copper	SMA	375 V	Male Pin, Plug	Crimp	-65 ░C	105 ░C	1	Gold	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	18 GHz	500	RG-405 (.085" Semi Rigid)	50 Ohms	Stainless Steel

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line)
