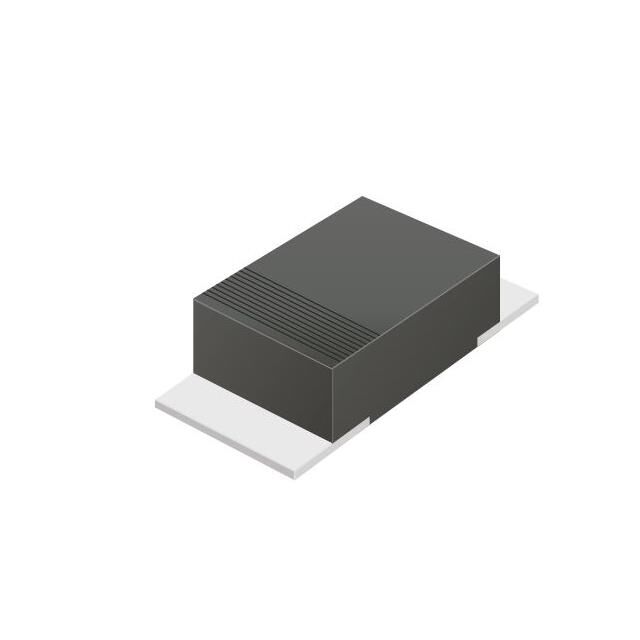

CDBM240L-HF

Active

Comchip Technology

DIODE SCHOTTK 40V 2A MINI SMA

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTK 40V 2A MINI SMA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CDBM240L-HF	CDBM240 Series

Capacitance @ Vr, F	160 pF	160 pF
Current - Average Rectified (Io)	2 A	2 A
Current - Reverse Leakage @ Vr	1 mA	1 mA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	125 °C	125 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	SOD-123T	SOD-123T
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	Mini SMA/SOD-123	Mini SMA/SOD-123
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V	40 V
Voltage - Forward (Vf) (Max) @ If	380 mV	380 - 400 mV

DIODE SCHOTTK 40V 2A MINI SMA

Part	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Current - Average Rectified (Io)	Technology	Package / Case	Current - Reverse Leakage @ Vr	Supplier Device Package
Comchip Technology CDBM240L-HF	380 mV	Surface Mount	40 V	160 pF	-55 °C	125 °C	200 mA, 500 ns	2 A	Schottky	SOD-123T	1 mA	Mini SMA/SOD-123
Comchip Technology CDBM240L-G	400 mV	Surface Mount	40 V	160 pF	-55 °C	125 °C	200 mA, 500 ns	2 A	Schottky	SOD-123T	1 mA	Mini SMA/SOD-123

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 2A Surface Mount Mini SMA/SOD-123
