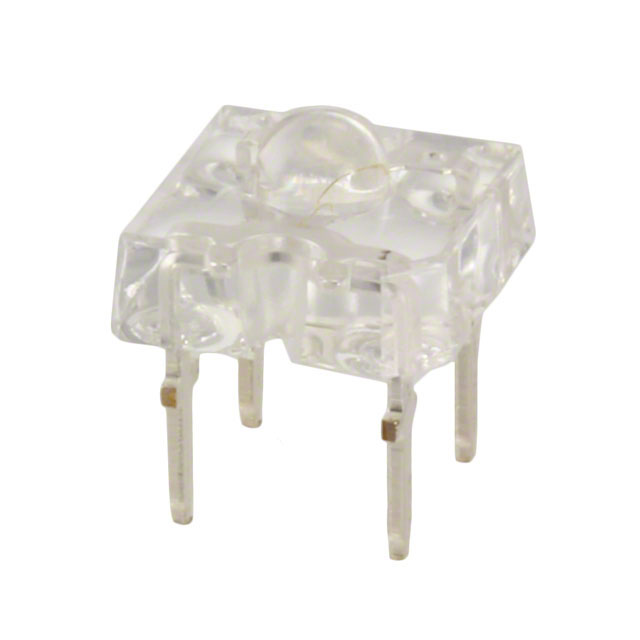

SSL-LX30448UWC
ActiveLumex Opto/Components Inc.
LED WHT CLR SQUARE TYPE LED T/H
Deep-Dive with AI
Search across all available documentation for this part.
SSL-LX30448UWC
ActiveLumex Opto/Components Inc.
LED WHT CLR SQUARE TYPE LED T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SSL-LX30448UWC | SSL-LX30448 Series |
|---|---|---|
| Color | White | Red, White |
| Configuration | Standard | Standard |
| Current - Test | 20 mA | 20 mA |
| Height (Max) [Max] [z] | 6.3 mm | 6.3 mm |
| Lens Color | Colorless | Colorless |
| Lens Size [diameter] | 3 mm | 3 mm |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Lens Transparency | Clear | Clear |
| Millicandela Rating | 500 mcd | 500 - 1250 mcd |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 4-DIP | 4-DIP |
| Package / Case | 0.2 in | 0.2 in |
| Package / Case | 0.2 in | 0.2 in |
| Size / Dimension [x] | 7.62 mm | 7.62 mm |
| Size / Dimension [y] | 7.62 mm | 7.62 mm |
| Supplier Device Package | Square Type LED | Square Type LED |
| Viewing Angle | 30 ° | 30 - 50 ° |
| Voltage - Forward (Vf) (Typ) | 3.5 V | 2.25 - 3.5 V |
| Wavelength - Peak | 550 nm | 550 - 660 nm |
SSL-LX30448 Series
LED RED CLR SQUARE TYPE LED T/H
| Part | Configuration | Millicandela Rating | Viewing Angle | Lens Transparency | Package / Case | Package / Case | Package / Case | Supplier Device Package | Height (Max) [Max] [z] | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Lens Style | Voltage - Forward (Vf) (Typ) | Lens Size [diameter] | Current - Test | Lens Color | Color | Wavelength - Peak |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. SSL-LX30448SRC | Standard | 1250 mcd | 50 ° | Clear | 4-DIP | 0.2 in | 0.2 in | Square Type LED | 6.3 mm | Through Hole | 7.62 mm | 7.62 mm | Round with Domed Top | 2.25 V | 3 mm | 20 mA | Colorless | Red | 660 nm |
Lumex Opto/Components Inc. SSL-LX30448UWC | Standard | 500 mcd | 30 ° | Clear | 4-DIP | 0.2 in | 0.2 in | Square Type LED | 6.3 mm | Through Hole | 7.62 mm | 7.62 mm | Round with Domed Top | 3.5 V | 3 mm | 20 mA | Colorless | White | 550 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SSL-LX30448 Series
White LED Indication - Discrete 3.5V 4-DIP (0.200", 5.08mm)
Documents
Technical documentation and resources
No documents available
