1000660053

Active

Molex - Temp Flex

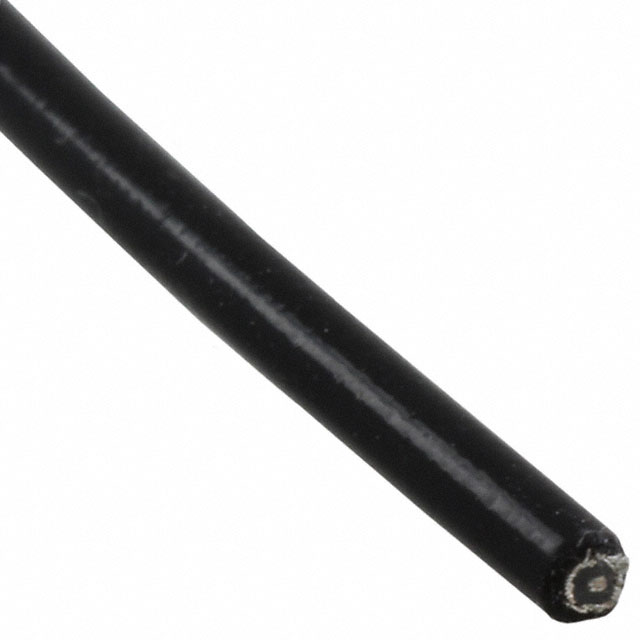

CABLE COAXIAL 30AWG 200'

Search across all available documentation for this part.

Active

Molex - Temp Flex

CABLE COAXIAL 30AWG 200'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1000660053	100066 Series

Cable Type	Coaxial	Coaxial
Conductor Material	Copper, Silver Coated	Copper, Silver Coated
Conductor Strand	-	7 - 34 AWG
Conductor Strand [custom]	7	7
Conductor Strand [custom]	38 AWG	38 AWG
Dielectric Diameter [diameter]	0.034 "	0.034 - 0.054 in
Dielectric Diameter [diameter]	0.86 mm	0.86 - 1.37 mm
Dielectric Material	Fluorinated Ethylene Propylene (FEP)	Fluorinated Ethylene Propylene (FEP)
Impedance	50 Ohms	50 Ohms
Jacket (Insulation) Diameter [diameter]	1.8 mm	1.8 - 2.54 mm
Jacket (Insulation) Diameter [diameter]	0.071 "	0.071 - 0.1 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Black	Black
Length	200 ', 25 ft	25 - 200 '
Length	60.96 m, 7.62 m	7.62 - 60.96 m
Length	-	Enter Number of Feet in Order Quantity
Length	-	3.05 - 30.48 m
Length	-	10 - 100 ft
Shield Coverage	95 %	95 %
Shield Material	Copper, Silver Coated	Copper, Silver Coated
Shield Type	Braid	Braid
Spool Size	-	5000 '
Spool Size	-	1524 m
VoP, Velocity of Propagation	70	70
Wire Gauge	30 AWG	26 - 30 AWG

CABLE COAXIAL 26AWG 10'

Part	Cable Type	Wire Gauge	Dielectric Material	VoP, Velocity of Propagation	Jacket Color	Shield Material	Length	Jacket (Insulation) Material	Shield Coverage	Shield Type	Length [x]	Length [x]	Conductor Strand	Impedance	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Spool Size	Spool Size	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
Molex - Temp Flex 1000660054	Coaxial	26 AWG	Fluorinated Ethylene Propylene (FEP)	70	Black	Copper, Silver Coated	Enter Number of Feet in Order Quantity	Fluorinated Ethylene-Propylene (FEP)	95 %	Braid	3.05 m, 30.48 m	10 ft, 100 ft	7 Strands, 34 AWG	50 Ohms	0.1 in	2.54 mm	5000 '	1524 m	1.37 mm	0.054 in	Copper, Silver Coated
Molex - Temp Flex 1000660053	Coaxial	30 AWG	Fluorinated Ethylene Propylene (FEP)	70	Black	Copper, Silver Coated		Fluorinated Ethylene-Propylene (FEP)	95 %	Braid				50 Ohms	0.071 "	1.8 mm			0.86 mm	0.034 "	Copper, Silver Coated	7	38 AWG	25 ft, 200 '	7.62 m, 60.96 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable 30 AWG 200.0' (60.96m) 50 Ohms
