1084305-1
ActiveTE Connectivity AMP Connectors

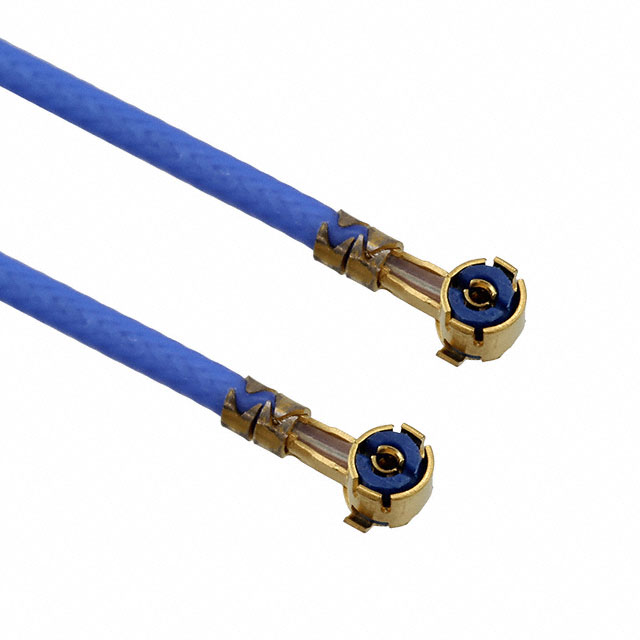

CBL ASSY SSMT JACK-JACK 3.543"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1084305-1
ActiveTE Connectivity AMP Connectors
CBL ASSY SSMT JACK-JACK 3.543"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1084305-1 |
|---|---|
| 1st Connector | SSMT Jack, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SSMT Jack, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Color | Blue |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 90 mm |
| Length | 3.543 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SSMT to SSMT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1084 Series
CBL ASSY SSMT JACK-JACK 3.543"
| Part | 1st Connector Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Style | Frequency - Max [Max] | Features | 1st Connector | Overall Impedance | 2nd Contact Gender | Color | 2nd Connector | Length | Length | 1st Contact Gender | 2nd Connector Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1084305-1 | Free Hanging (In-Line) | 125 °C | -40 °C | SSMT to SSMT | 6000 MHz | Shielded | Right Angle, SSMT Jack | 50 Ohms | Female | Blue | SSMT Jack, Right Angle | 90 mm | 3.543 in | Female | Free Hanging (In-Line) |
Description
General part information
1084 Series
Cable Assembly Coaxial SSMT to SSMT 3.543" (90.00mm)
