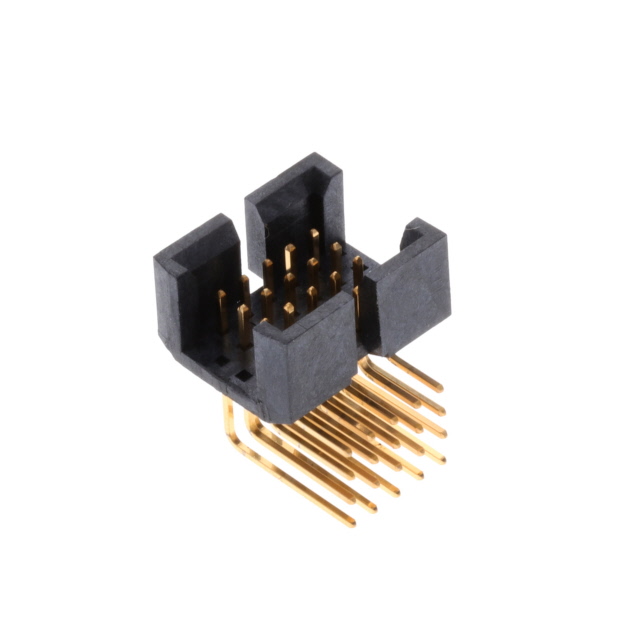

TMMS-105-01-G-Q-RA

Active

Samtec Inc.

CONN HDR 2MM PCB 4ROW R/A 20POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TMMS-105-01-G-Q-RA

Active

Samtec Inc.

CONN HDR 2MM PCB 4ROW R/A 20POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMMS-105-01-G-Q-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.13 in
Contact Length - Mating	3.3 mm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	12.07 mm
Insulation Height [z]	0.475 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

TMMS-105 Series

Part	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Contact Shape	Insulation Color	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Type	Material Flammability Rating	Contact Material	Contact Length - Mating	Contact Length - Mating	Connector Type	Termination	Insulation Height	Insulation Height [z]	Number of Positions	Contact Finish - Post	Insulation Height	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TMMS-105-01-SM-Q-RA-FS	0.079 in	2 mm	Gold	30 Áin	0.76 Ám	All	0.079 in	2 mm	Push-Pull	Square	Black	Shrouded - 4 Wall	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	0.09 "	2.29 mm	Male Pin	UL94 V-0	Phosphor Bronze	0.13 in	3.3 mm	Header	Solder	12.07 mm	0.475 in	20	Tin
Samtec Inc. TMMS-105-01-S-Q	0.079 in	2 mm	Gold	30 Áin	0.76 Ám	All	0.079 in	2 mm	Push-Pull	Square	Black	Shrouded - 4 Wall	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Through Hole	0.113 in	2.87 mm	Male Pin	UL94 V-0	Phosphor Bronze	0.13 in	3.3 mm	Header	Solder	7.6 mm		20	Tin	0.299 in	0.302 in	7.67 mm
Samtec Inc. TMMS-105-01-G-Q-RA	0.079 in	2 mm	Gold	10 çin	0.25 çm	All	0.079 in	2 mm	Push-Pull	Square	Black	Shrouded - 4 Wall	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	0.09 "	2.29 mm	Male Pin	UL94 V-0	Phosphor Bronze	0.13 in	3.3 mm	Header	Solder	12.07 mm	0.475 in	20	Gold				10 çin	0.25 çm
Samtec Inc. TMMS-105-01-F-Q-RA-FS	0.079 in	2 mm	Gold	3 µin	0.076 µm	All	0.079 in	2 mm	Push-Pull	Square	Black	Shrouded - 4 Wall	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	0.09 "	2.29 mm	Male Pin	UL94 V-0	Phosphor Bronze	0.13 in	3.3 mm	Header	Solder	12.07 mm	0.475 in	20	Tin
Samtec Inc. TMMS-105-01-L-Q-FS	0.079 in	2 mm	Gold	10 çin	0.25 çm	All	0.079 in	2 mm	Push-Pull	Square	Black	Shrouded - 4 Wall	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Through Hole	0.113 in	2.87 mm	Male Pin	UL94 V-0	Phosphor Bronze	0.13 in	3.3 mm	Header	Solder	7.6 mm		20	Tin	0.299 in	0.302 in	7.67 mm
Samtec Inc. TMMS-105-01-F-Q-FS	0.079 in	2 mm	Gold	3 µin	0.076 µm	All	0.079 in	2 mm	Push-Pull	Square	Black	Shrouded - 4 Wall	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Through Hole	0.113 in	2.87 mm	Male Pin	UL94 V-0	Phosphor Bronze	0.13 in	3.3 mm	Header	Solder	7.6 mm		20	Tin	0.299 in	0.302 in	7.67 mm
Samtec Inc. TMMS-105-01-S-Q-RA-FS	0.079 in	2 mm	Gold	30 Áin	0.76 Ám	All	0.079 in	2 mm	Push-Pull	Square	Black	Shrouded - 4 Wall	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	0.09 "	2.29 mm	Male Pin	UL94 V-0	Phosphor Bronze	0.13 in	3.3 mm	Header	Solder	12.07 mm	0.475 in	20	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.22
		10	$ 6.68
		25	$ 6.31
		50	$ 6.08
		100	$ 5.67

Description

General part information

TMMS-105 Series

Connector Header Through Hole, Right Angle 20 position 0.079" (2.00mm)
