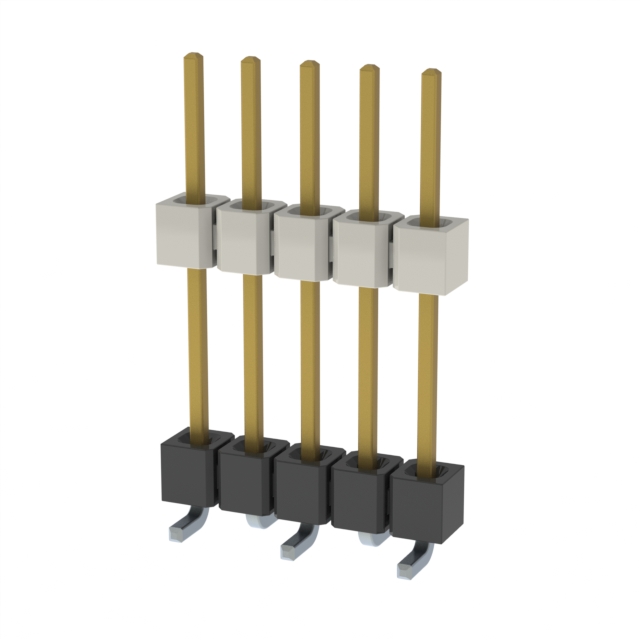

HW-05-10-F-S-580-SM

Active

Samtec Inc.

CONN HDR 5POS 0.1 STACK SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW-05-10-F-S-580-SM

Active

Samtec Inc.

CONN HDR 5POS 0.1 STACK SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-05-10-F-S-580-SM

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	3 Áin
Contact Finish Thickness - Post (Mating)	0.076 Ám
Length - Overall Pin	19.431 mm
Length - Overall Pin	0.765 in
Length - Post (Mating) [x]	4.699 mm
Length - Post (Mating) [x]	0.185 in
Length - Stack Height [x]	0.58 in
Length - Stack Height [x]	14.732 mm
Mounting Type	Surface Mount
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

HW-05-10 Series

Part	Length - Stack Height [z]	Length - Stack Height [z]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Positions	Pitch [x]	Pitch [x]	Termination	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Row Spacing [x]	Row Spacing	Contact Finish - Post (Mating)	Number of Rows	Color	Length - Overall Pin	Length - Overall Pin	Mounting Type	Length - Stack Height [x]	Length - Stack Height [x]	Length - Stack Height [custom]	Length - Stack Height [custom]	Length - Tail [x]	Length - Tail [x]	Length - Overall Pin [x]
Samtec Inc. HW-05-10-G-D-625-SM	0.625 in	15.875 mm	0.25 Ám	10 Áin	10	2.54 mm	0.1 in	Solder	0.14 in	3.556 mm	0.1 in	2.54 mm	Gold	2	Black	19.431 mm	0.765 in	Surface Mount
Samtec Inc. HW-05-10-L-S-495-SM			0.25 Ám	10 Áin		2.54 mm	0.1 in	Solder	0.27 in	6.858 mm			Gold	1	Black	19.431 mm	0.765 in	Surface Mount	12.573 mm	0.495 in
Samtec Inc. HW-05-10-G-D-570-SM			0.25 Ám	10 Áin	10	2.54 mm	0.1 in	Solder	0.195 in	4.953 mm	0.1 in	2.54 mm	Gold	2	Black	19.431 mm	0.765 in	Surface Mount	14.478 mm	0.57 in
Samtec Inc. HW-05-10-T-D-437-SM					10	2.54 mm	0.1 in	Solder	0.328 in	8.331 mm	0.1 in	2.54 mm	Tin	2	Black	19.431 mm	0.765 in	Surface Mount	11.1 mm	0.437 in
Samtec Inc. HW-05-10-F-S-580-SM			0.076 Ám	3 Áin		2.54 mm	0.1 in	Solder	0.185 in	4.699 mm			Gold	1	Black	19.431 mm	0.765 in	Surface Mount	14.732 mm	0.58 in
Samtec Inc. HW-05-10-T-D-600-SM					10	2.54 mm	0.1 in	Solder	0.165 in	4.191 mm	0.1 in	2.54 mm	Tin	2	Black	19.431 mm	0.765 in	Surface Mount	15.24 mm	0.6 in
Samtec Inc. HW-05-10-F-D-475-SM	0.475 in	12.065 mm	0.076 Ám	3 Áin	10	2.54 mm	0.1 in	Solder	0.29 in	7.366 mm	0.1 in	2.54 mm	Gold	2	Black	19.431 mm	0.765 in	Surface Mount
Samtec Inc. HW-05-10-T-S-557-SM						2.54 mm	0.1 in	Solder	0.208 in	5.283 mm			Tin	1	Black	19.431 mm	0.765 in	Surface Mount			0.557 in	14.148 mm
Samtec Inc. HW-05-10-L-S-497-SM			0.25 Ám	10 Áin		2.54 mm	0.1 in	Solder	0.268 in	6.807 mm			Gold	1	Black	19.431 mm	0.765 in	Surface Mount	12.624 mm	0.497 in
Samtec Inc. HW-05-10-S-D-380-250			0.76 µm	30 µin	10	2.54 mm	0.1 in	Solder	0.2 in	5.08 mm	0.1 in	2.54 mm	Gold	2	Black	21.082 mm		Through Hole	9.652 mm	0.38 in			0.25 in	6.35 mm	0.83 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HW-05-10 Series

5 Position Header Spacer Connector 0.100" (2.54mm) Gold Surface Mount
