627W7W2-222-1N2

Active

EDAC Inc.

CONN D-SUB PLUG 7P PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627W7W2-222-1N2

Active

EDAC Inc.

CONN D-SUB PLUG 7P PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627W7W2-222-1N2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 7W2
Voltage Rating	125 VDC

627W7W Series

Part	Ingress Protection	Material Flammability Rating	Mounting Type	Contact Type	Dielectric Material	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Features	Connector Style	Contact Finish	Number of Rows	Termination	Connector Type	Contact Material	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)	Color	Flange Feature	Voltage Rating	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish Thickness
EDAC Inc. 627W7W2-624-1ND	IP67 - Dust Tight Waterproof	UL94 V-0	Panel Mount Through Hole	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	0.76 Ám	30 Áin	Board Lock Grounding Indents Shielded	Combo D-Sub	Gold	2	Solder	Male Pins Plug	Copper Alloy	7	2	10A 5A	Black	Board Side (M3)	125 VDC	2 (DA A) - 7W2	-25 °C	85 °C
EDAC Inc. 627W7W2-122-4N2	IP67 - Dust Tight Waterproof	UL94 V-0	Panel Mount Through Hole	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	0.127 µm	5 µin	Grounding Indents Shielded	Combo D-Sub	Gold	2		Male Pins Plug	Copper Alloy	7	2		Black	Housing/Shell (4-40)	125 VDC	2 (DA A) - 7W2	-25 °C	85 °C	5 A 40 A
EDAC Inc. 627W7W2-222-1N2	IP67 - Dust Tight Waterproof	UL94 V-0	Panel Mount Through Hole	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel			Grounding Indents Shielded	Combo D-Sub	Gold	2		Male Pins Plug	Copper Alloy	7	2	10A 5A	Black	Housing/Shell (4-40)	125 VDC	2 (DA A) - 7W2	-25 °C	85 °C		Flash
EDAC Inc. 627W7W2-124-3N2	IP67 - Dust Tight Waterproof	UL94 V-0	Panel Mount Through Hole	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	0.127 µm	5 µin	Grounding Indents Shielded	Combo D-Sub	Gold	2	Solder	Male Pins Plug	Copper Alloy	7	2		Black	Housing/Shell (4-40)	125 VDC	2 (DA A) - 7W2	-25 °C	85 °C	5 A 30 A
EDAC Inc. 627W7W2-324-4N2	IP67 - Dust Tight Waterproof	UL94 V-0	Panel Mount Through Hole	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	0.38 µm	15 µin	Grounding Indents Shielded	Combo D-Sub	Gold	2	Solder	Male Pins Plug	Copper Alloy	7	2		Black	Housing/Shell (4-40)	125 VDC	2 (DA A) - 7W2	-25 °C	85 °C	5 A 40 A
EDAC Inc. 627W7W2-122-2N2	IP67 - Dust Tight Waterproof	UL94 V-0	Panel Mount Through Hole	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	0.127 µm	5 µin	Grounding Indents Shielded	Combo D-Sub	Gold	2		Male Pins Plug	Copper Alloy	7	2		Black	Housing/Shell (4-40)	125 VDC	2 (DA A) - 7W2	-25 °C	85 °C	5 A 20 A
EDAC Inc. 627W7W2-322-1NA	IP67 - Dust Tight Waterproof	UL94 V-0	Panel Mount Through Hole	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	0.38 µm	15 µin	Grounding Indents Shielded	Combo D-Sub	Gold	2		Male Pins Plug	Copper Alloy	7	2	10A 5A	Black	Housing/Shell (M3)	125 VDC	2 (DA A) - 7W2	-25 °C	85 °C
EDAC Inc. 627W7W2-622-3NA	IP67 - Dust Tight Waterproof	UL94 V-0	Panel Mount Through Hole	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	0.76 Ám	30 Áin	Grounding Indents Shielded	Combo D-Sub	Gold	2		Male Pins Plug	Copper Alloy	7	2		Black	Housing/Shell (M3)	125 VDC	2 (DA A) - 7W2	-25 °C	85 °C	5 A 30 A
EDAC Inc. 627W7W2-622-1N2	IP67 - Dust Tight Waterproof	UL94 V-0	Panel Mount Through Hole	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	0.76 Ám	30 Áin	Grounding Indents Shielded	Combo D-Sub	Gold	2		Male Pins Plug	Copper Alloy	7	2	10A 5A	Black	Housing/Shell (4-40)	125 VDC	2 (DA A) - 7W2	-25 °C	85 °C
EDAC Inc. 627W7W2-122-3N2	IP67 - Dust Tight Waterproof	UL94 V-0	Panel Mount Through Hole	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	0.127 µm	5 µin	Grounding Indents Shielded	Combo D-Sub	Gold	2		Male Pins Plug	Copper Alloy	7	2		Black	Housing/Shell (4-40)	125 VDC	2 (DA A) - 7W2	-25 °C	85 °C	5 A 30 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 11.85

Description

General part information

627W7W Series

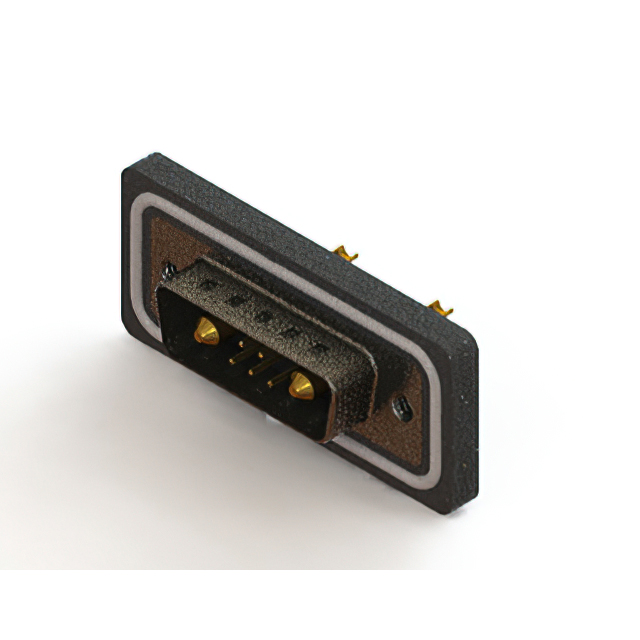

7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
