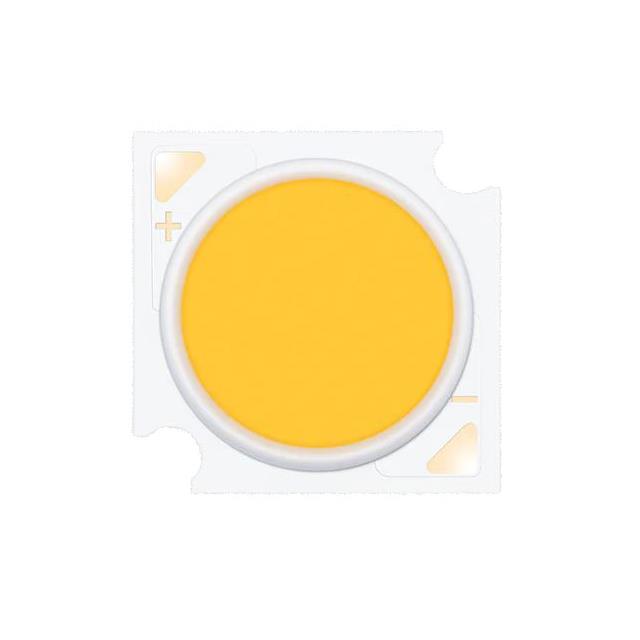

SPHWHAHDNM251ZT3D4

Active

Samsung Semiconductor, Inc.

LED COB D GEN4 NEUT WHT SQ 4000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPHWHAHDNM251ZT3D4

Active

Samsung Semiconductor, Inc.

LED COB D GEN4 NEUT WHT SQ 4000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.04
		10	$ 15.06
		160	$ 12.42
		640	$ 11.63

Description

General part information

SPHWHAHDNM251 Series

LED Lighting COBs Engines Modules Chip On Board (COB) COB D Gen4 White, Neutral Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPHWHAHDNM251ZT3D4	SPHWHAHDNM251 Series

CCT (K)	4000 K	2700 - 6500 K
Color	Neutral, White	Cool, White, Warm, Neutral
Configuration	Square	Square
CRI (Color Rendering Index)	80	80
Current - Max [Max]	4.14 A	2.76 - 4.14 A
Current - Test	1.62 A	1.62 A
Height [z]	1.7 mm	1.5 - 1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	22 mm	22 mm
Lumens/Watt @ Current - Test	174 lm/W	126 - 174 lm/W
Luminous Flux @ Current/Temperature	14199 lm	11021 - 14199 lm
Size / Dimension [x]	28 mm	28 mm
Size / Dimension [y]	28 mm	28 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	50.5 V	50 - 52 V

SPHWHAHDNM251 Series

LED COB D GEN2 COOL WHT SQ 5000K

Part	Color	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Height [z]	Temperature - Test	Viewing Angle	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature	Lens Type	Configuration	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Type	Current - Test	CCT (K)
Samsung Semiconductor, Inc. SPHWHAHDNM251ZR3DB	Cool, White	80	159 lm/W	1.5 mm	85 °C	115 °	22 mm	13196 lm	Flat	Square	28 mm	28 mm	3.24 A	51.1 V	Chip On Board (COB)	1.62 A
Samsung Semiconductor, Inc. SPHWHAHDNM251ZU3DB	Warm, White	80	155 lm/W	1.5 mm	85 °C	115 °	22 mm	12852 lm	Flat	Square	28 mm	28 mm	3.24 A	51.1 V	Chip On Board (COB)	1.62 A	3500 K
Samsung Semiconductor, Inc. SPHWHAHDNM251ZW3T1	Warm, White	80	126 lm/W	1.5 mm	85 °C	115 °	22 mm		Flat	Square	28 mm	28 mm	2.76 A	52 V	Chip On Board (COB)	1.62 A	2700 K
Samsung Semiconductor, Inc. SPHWHAHDNM251ZV3D2	Warm, White	80	148 lm/W	1.5 mm	85 °C	115 °	22 mm	12468 lm	Flat	Square	28 mm	28 mm	4.14 A	52 V	Chip On Board (COB)	1.62 A	3000 K
Samsung Semiconductor, Inc. SPHWHAHDNM251ZT3D4	Neutral, White	80	174 lm/W	1.7 mm	85 °C	115 °	22 mm	14199 lm	Flat	Square	28 mm	28 mm	4.14 A	50.5 V	Chip On Board (COB)	1.62 A	4000 K
Samsung Semiconductor, Inc. SPHWHAHDNM251ZU2T9	Warm, White	80	137 lm/W	1.5 mm	85 °C	115 °	22 mm	11533 lm	Flat	Square	28 mm	28 mm	2.76 A	52 V	Chip On Board (COB)	1.62 A	3500 K
Samsung Semiconductor, Inc. SPHWHAHDNM251ZR3DC	Cool, White	80	171 lm/W	1.5 mm	85 °C	115 °	22 mm	13961 lm	Flat	Square	28 mm	28 mm	3.24 A		Chip On Board (COB)	1.62 A
Samsung Semiconductor, Inc. SPHWHAHDNM251ZV3DB	Warm, White	80	151 lm/W	1.5 mm	85 °C	115 °	22 mm	12468 lm	Flat	Square	28 mm	28 mm	3.24 A	51.1 V	Chip On Board (COB)	1.62 A	3000 K
Samsung Semiconductor, Inc. SPHWHAHDNM251ZT3DC	Neutral, White	80	168 lm/W	1.5 mm	85 °C	115 °	22 mm	13735 lm	Flat	Square	28 mm	28 mm	3.24 A		Chip On Board (COB)	1.62 A	4000 K
Samsung Semiconductor, Inc. SPHWHAHDNM251ZW3D2	Warm, White	80	140 lm/W	1.5 mm	85 °C	115 °	22 mm	11815 lm	Flat	Square	28 mm	28 mm	4.14 A	52 V	Chip On Board (COB)	1.62 A	2700 K
