2-87523-3

Active

TE Connectivity AMP Connectors

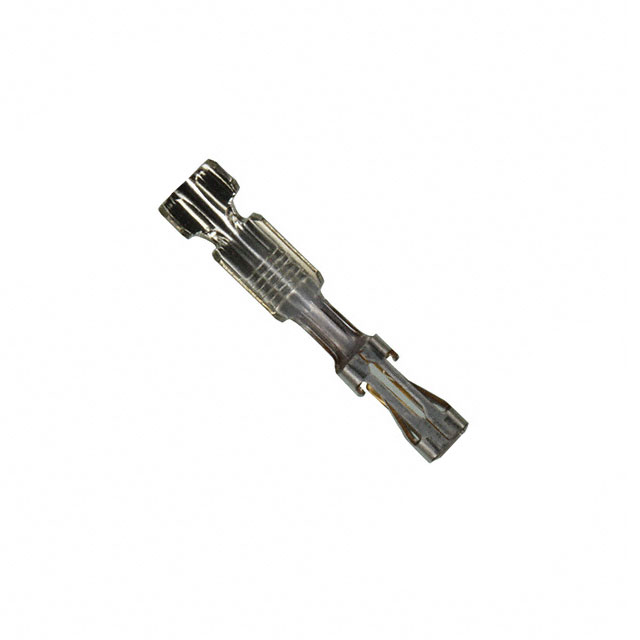

CONN SOCKET 20-24AWG CRIMP GOLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SOCKET 20-24AWG CRIMP GOLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Gold 20-24 AWG Crimp

Technical documentation and resources

Part	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Termination	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 1-87523-9	Gold	20 AWG	24 AWG	Socket	Crimp	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 2-87523-1	Gold	20 AWG	24 AWG	Socket	Crimp	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 2-87523-3	Gold	20 AWG	24 AWG	Socket	Crimp	0.38 µm	15 µin
TE Connectivity AMP Connectors 87523-2	Gold	20 AWG	24 AWG	Socket	Crimp	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 87523-4	Gold	20 AWG	24 AWG	Socket	Crimp	0.38 µm	15 µin
TE Connectivity AMP Connectors 1-87523-5	Gold	20 AWG	24 AWG	Socket	Crimp	0.38 µm	15 µin
TE Connectivity AMP Connectors 87523-7	Gold	20 AWG	24 AWG	Socket	Crimp	0.38 µm	15 µin
TE Connectivity AMP Connectors 87523-3	Gold	20 AWG	24 AWG	Socket	Crimp	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 6-87523-8	Gold	20 AWG	24 AWG	Socket	Crimp	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 6-87523-9	Gold	20 AWG	24 AWG	Socket	Crimp	0.76 Ám	30 Áin
