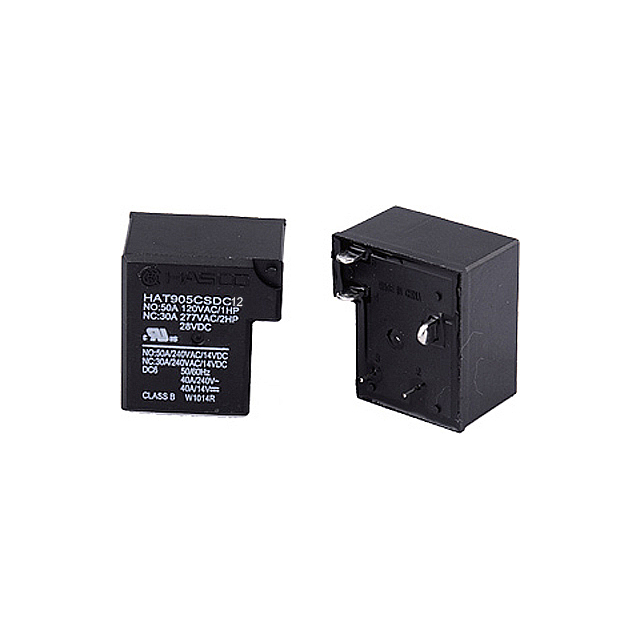

HAT905CSDC12

Active

Hasco Relays

RELAY SPDT 50A 12V

Search across all available documentation for this part.

Active

Hasco Relays

RELAY SPDT 50A 12V

Technical Specifications

Parameters and characteristics for this part

RELAY SPDT 50A 12V

Part	Coil Type	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Coil Insulation	Switching Voltage [Max]	Contact Rating (Current)	Contact Material	Operate Time	Mounting Type	Must Release Voltage	Coil Voltage	Coil Current	Contact Form	Termination Style
Hasco Relays HAT905CSDC12	Non Latching	9 VDC	85 °C	-20 C	10 ms	Class B	277 VAC	50 A	Silver Alloy	15 ms	Through Hole	1.2 VDC	12 VDC	100 mA	SPDT (1 Form C)	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	19	$ 2.47

General part information

Relay SPDT (1 Form C) 12VDC Coil Through Hole
