DP1R020JQ3

Obsolete

JAE Electronics

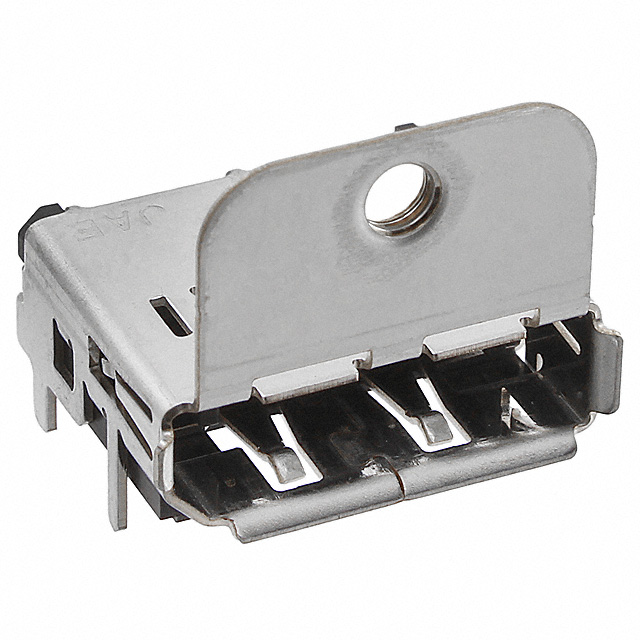

CONN RCP 1.1A DISPLAYPORT SMD RA

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCP 1.1A DISPLAYPORT SMD RA

Technical Specifications

Parameters and characteristics for this part

Specification	DP1R020JQ3

Connector Type	DisplayPort
Contact Finish	Gold
Current Rating (Amps)	500 mA
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Flange, Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Shell/Shielding Material	Copper Alloy
Shielding	Unshielded
Specifications	Display Port 1.1a
Termination	Solder

Part	Mounting Feature	Contact Finish	Gender	Connector Type	Mounting Type	Number of Ports	Termination	Current Rating (Amps)	Material Flammability Rating	Shielding	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Shell/Shielding Material	Specifications	Insulation Color
JAE Electronics DP1R020JQ3	Flange Horizontal	Gold	Receptacle	DisplayPort	Surface Mount Right Angle Through Hole	1	Solder	500 mA	UL94 V-0	Unshielded	10000	85 °C	-20 C	Copper Alloy	Display Port 1.1a	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

DisplayPort Display Port 1.1a Receptacle Connector 20 Position Surface Mount, Right Angle; Through Hole
