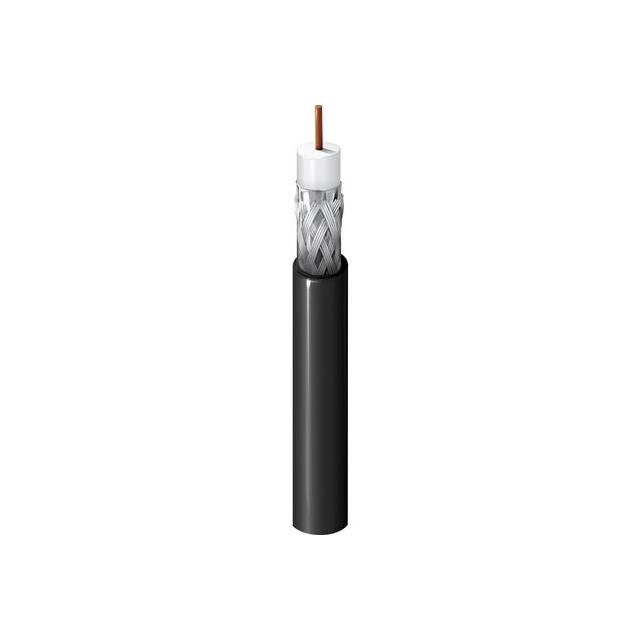

5399B5 010U1000

Obsolete

Belden Inc.

SERIES 6 COAX

Search across all available documentation for this part.

Obsolete

Belden Inc.

SERIES 6 COAX

Technical Specifications

Parameters and characteristics for this part

Specification	5399B5 010U1000

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.18 in
Dielectric Diameter [diameter]	4.57 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	6.86 mm
Jacket (Insulation) Diameter [diameter]	0.27 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	60%, 100%
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	83
Wire Gauge	18 AWG

Part	Cable Type	Conductor Material	Shield Coverage	Dielectric Material	Cable Group	Shield Type	Conductor Strand	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Shield Material	Length	Length	VoP, Velocity of Propagation	Impedance	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket Color
Belden Inc. 5399B5 010U1000	Coaxial	Copper Bare	100% 60%	Foam Polyethylene (FPE)	RG-6	Braid Foil	Solid	6.86 mm	0.27 in	18 AWG	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	Aluminum	304.8 m	1000 ft	83	75 Ohms	0.18 in	4.57 mm	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable 18 AWG RG-6 1000.0' (304.80m) 75 Ohms
