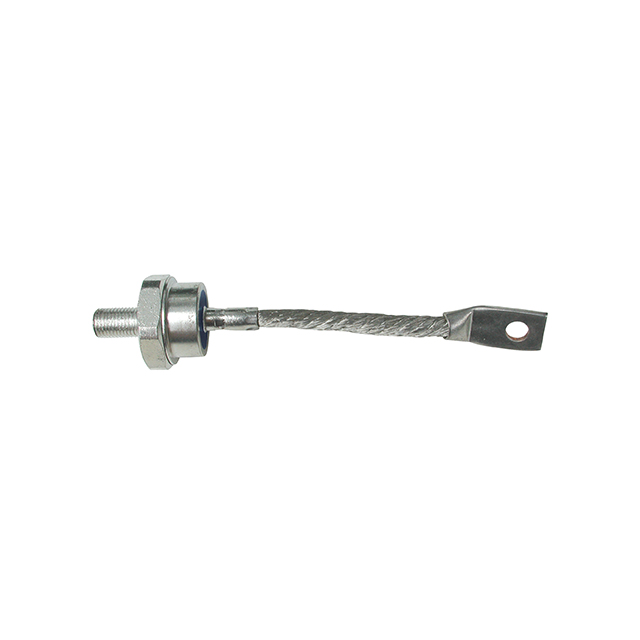

150K60A

Active

Solid State Inc.

DIODE GEN PURP 600V 150A DO8

Search across all available documentation for this part.

Active

Solid State Inc.

DIODE GEN PURP 600V 150A DO8

Technical Specifications

Parameters and characteristics for this part

Specification	150K60A

Current - Average Rectified (Io)	150 A
Current - Reverse Leakage @ Vr	35 mA
Mounting Type	Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Stud, DO-8, DO-205AA
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-8
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.33 V

DIODE GEN PURP 600V 150A DO8

Part	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Technology	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Current - Average Rectified (Io)	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Solid State Inc. 150K60A	Standard Recovery >500ns	200 mA	1.33 V	DO-8	Standard	35 mA	600 V	Stud Mount	150 A	DO-205AA, DO-8, Stud	200 C	-65 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	150	$ 29.66

General part information

Diode 600 V 150A Stud Mount DO-8
