100025321

Active

Telegartner Inc

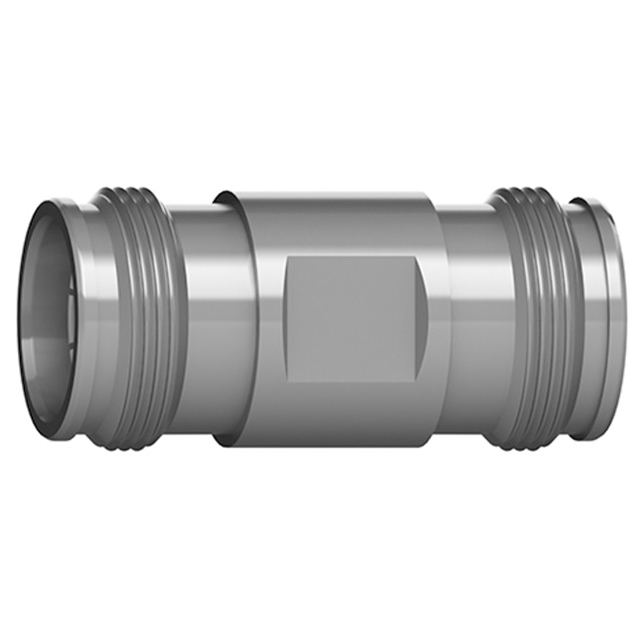

4.3-10 ADAPT STR F-F

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100025321

Active

Telegartner Inc

4.3-10 ADAPT STR F-F

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100025321	J01442C0 Series

Adapter Series [Max]	4.3/10	4.3/10
Adapter Series [Min]	4.3/10	4.3/10
Adapter Type	Jack to Jack	Jack to Jack, Plug to Plug, Plug to Jack
Body Finish	Silver	Silver, White Bronze
Body Material	Copper Alloy	Copper Alloy, Brass
Center Contact Material	Copper Alloy	Copper Alloy, Brass
Center Contact Plating	Silver	Silver
Center Gender	Female to Female	Female to Female, Male to Male
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	4.3/10 Jack, Female Socket	4.3/10 Jack, Female Socket, 4.3/10 Plug, Male Pin
Convert To (Adapter End)	Female Socket, 4.3/10 Jack	Female Socket, 4.3/10 Jack, 4.3/10 Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	6000 MHz
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Feature	-	Flange, Bulkhead
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Style	Straight	Straight

J01442C0 Series

4.3-10 ADAPT STR F-F

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Center Contact Plating	Dielectric Material	Frequency - Max [Max]	Adapter Type	Adapter Series [Max]	Adapter Series [Min]	Style	Body Finish	Body Material	Center Gender	Convert From (Adapter End)	Ingress Protection	Impedance	Center Contact Material	Conversion Type	Convert To (Adapter End)	Mounting Feature
Telegartner Inc 100025321	85 °C	-40 °C	Free Hanging (In-Line)	Silver	Polytetrafluoroethylene (PTFE)	6000 MHz	Jack to Jack	4.3/10	4.3/10	Straight	Silver	Copper Alloy	Female to Female	4.3/10 Jack, Female Socket	IP68 - Dust Tight, Waterproof	50 Ohms	Copper Alloy	Same Series	4.3/10 Jack, Female Socket
Telegartner Inc 100025320			Free Hanging (In-Line)	Silver	Polytetrafluoroethylene (PTFE)	6000 MHz	Plug to Plug	4.3/10	4.3/10	Straight	White Bronze	Brass	Male to Male	4.3/10 Plug, Male Pin	IP68 - Dust Tight, Waterproof	50 Ohms	Brass	Same Series	4.3/10 Plug, Male Pin
Telegartner Inc 100023523	85 °C	-40 °C		Silver	Polytetrafluoroethylene (PTFE)	6000 MHz	Jack to Jack	4.3/10	4.3/10	Straight	Silver	Brass	Female to Female	4.3/10 Jack, Female Socket	IP68 - Dust Tight, Waterproof	50 Ohms	Copper Alloy	Same Series	4.3/10 Jack, Female Socket	Flange
Telegartner Inc 100025322	85 °C	-40 °C		Silver	Polytetrafluoroethylene (PTFE)	6000 MHz	Jack to Jack	4.3/10	4.3/10	Straight	Silver	Brass	Female to Female	4.3/10 Jack, Female Socket	IP68 - Dust Tight, Waterproof	50 Ohms	Copper Alloy	Same Series	4.3/10 Jack, Female Socket	Bulkhead
Telegartner Inc 100023524	85 °C	-40 °C	Free Hanging (In-Line)	Silver	Polytetrafluoroethylene (PTFE)	6000 MHz	Plug to Jack	4.3/10	4.3/10	Straight	Silver	Brass		4.3/10 Jack, Female Socket	IP68 - Dust Tight, Waterproof	50 Ohms	Copper Alloy	Same Series	4.3/10 Plug, Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 42.73
		10	$ 39.27
		25	$ 36.32
		50	$ 32.29

Description

General part information

J01442C0 Series

Adapter Coaxial Connector 4.3/10 Jack, Female Socket To 4.3/10 Jack, Female Socket 50 Ohms
