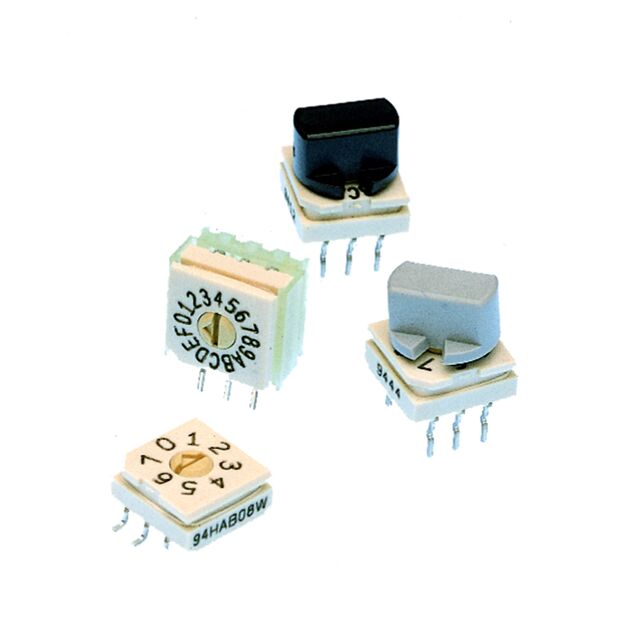

94HCB10RAT

Active

Grayhill Inc.

SWITCH ROTARY DIP BCD 0.1A 50V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY DIP BCD 0.1A 50V

Technical Specifications

Parameters and characteristics for this part

SWITCH ROTARY DIP BCD 0.1A 50V

Part	Contact Finish	Voltage Rating	Mounting Type	Height Above Board [z]	Height Above Board [z]	Washable	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Current Rating (Amps)	Contact Material	Actuator Type	Termination Style	Features	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mechanical Life	Body Material	Length	Length [x]	Number of Positions
Grayhill Inc. 94HCB10RAT	Gold	50 V	Through Hole, Right Angle	10.16 mm	0.4 "		Raised	0.1 in	Full	2.54 mm	100 mA	Copper Alloy	Rotary with Shaft	PC Pin	Sealed	85 °C	-40 °C	BCD	10000 Steps	Plastic	10.92 mm	0.43 in	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch BCD 10 Position Through Hole, Right Angle Rotary with Shaft Actuator 100mA 50VDC
