PKH.M0.8GL.AG

Active

LEMO

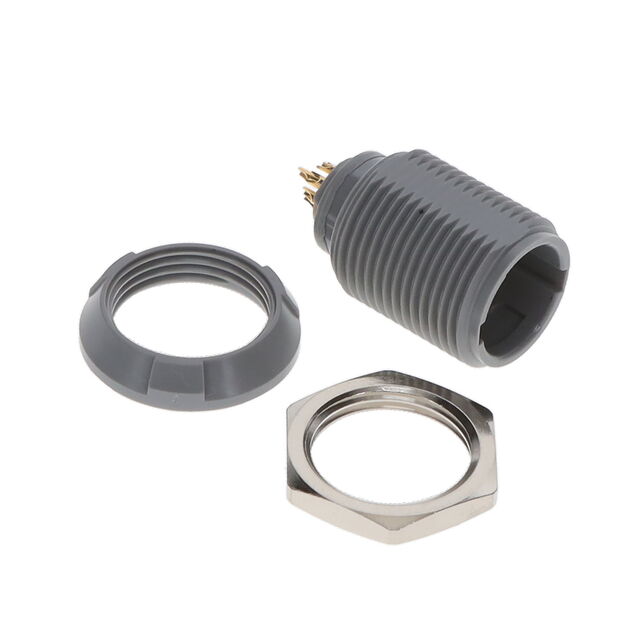

CONN RCPT MALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT MALE 8P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	PKH.M0.8GL.AG

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	5 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut
Number of Positions	8
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	H
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	M08
Shielding	Unshielded

CONN RCPT MALE 8P GOLD SLDR CUP

Part	Contact Finish - Mating	Color	Shielding	Insert Material	Current Rating (Amps)	Fastening Type	Shell Material	Primary Material	Shell Size - Insert	Applications	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Feature	Orientation	Number of Positions
LEMO PKH.M0.8GL.AG	Gold	Gray	Unshielded	Polyetheretherketone (PEEK)	5 A	Detent Lock, Push-Pull	Polysulfone (PSU)	Plastic	M08	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50	150 °C	-50 °C	Male Pins, Receptacle	Front and Rear Side Nut	H	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Male Pins Solder Cup
