794040-2

Active

TE Connectivity AMP Connectors

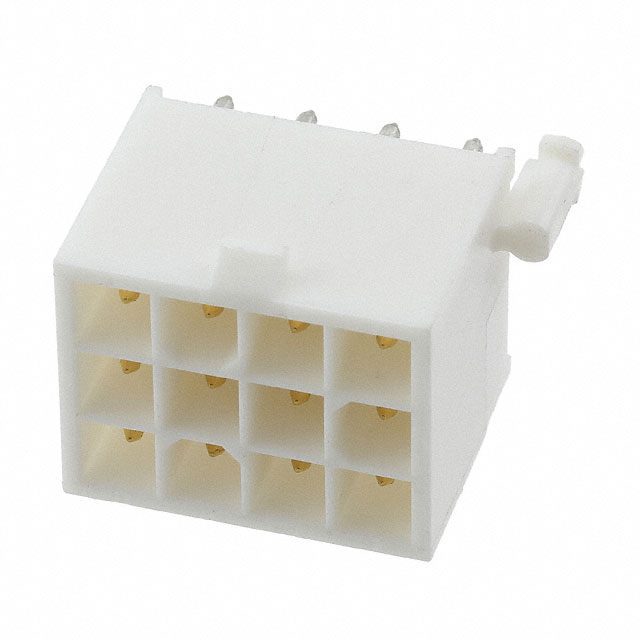

CONN HEADER VERT 12POS 4.14MM

Deep-Dive with AI

Search across all available documentation for this part.

794040-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 12POS 4.14MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.36
		10	$ 7.28
		200	$ 6.48
		600	$ 6.06
		1000	$ 5.40

Description

General part information

794040 Series

Connector Header Through Hole 12 position 0.163" (4.14mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	794040-2	794040 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold, Tin-Lead
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	4.45 mm	4.45 mm
Contact Length - Post	0.175 in	0.175 in
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	13.5 mm	13.5 mm
Insulation Height	0.531 in	0.531 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	12	12
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

794040 Series

CONN HEADER VERT 12POS 4.14MM

Part	Contact Shape	Fastening Type	Current Rating (Amps)	Shrouding	Insulation Material	Applications	Voltage Rating	Style	Contact Length - Post	Contact Length - Post	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Number of Positions Loaded	Termination	Number of Rows	Insulation Color	Insulation Height	Insulation Height	Number of Positions	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Material
TE Connectivity AMP Connectors 794040-2	Circular	Locking Ramp	Varies by Wire Gauge	Shrouded - 4 Wall	Nylon, Polyamide (PA)	General Purpose	600 VAC	Board to Cable/Wire	4.45 mm	0.175 in	Header	4.14 mm	0.163 in	Tin-Lead	Male Pin	150 Áin	3.81 Ám	UL94 V-0	All	Solder	3	White	13.5 mm	0.531 in	12	Gold	4.14 mm	0.163 in	-20 C	105 ░C	30 Áin	0.76 Ám	Through Hole	Brass
TE Connectivity AMP Connectors 794040-1	Circular	Locking Ramp	Varies by Wire Gauge	Shrouded - 4 Wall	Nylon, Polyamide (PA)	General Purpose	600 VAC	Board to Cable/Wire	4.45 mm	0.175 in	Header	4.14 mm	0.163 in	Tin-Lead	Male Pin	150 Áin	3.81 Ám	UL94 V-0	All	Solder	3	White	13.5 mm	0.531 in	12	Tin-Lead	4.14 mm	0.163 in	-20 C	85 °C	150 Áin	3.81 Ám	Through Hole	Brass
TE Connectivity AMP Connectors 1-794040-0	Circular	Locking Ramp	Varies by Wire Gauge	Shrouded - 4 Wall	Nylon, Polyamide (PA)	General Purpose	600 VAC	Board to Cable/Wire	4.45 mm	0.175 in	Header	4.14 mm	0.163 in	Tin	Male Pin	150 Áin	3.81 Ám	UL94 V-0	All	Solder	3	White	13.5 mm	0.531 in	12		4.14 mm	0.163 in	-20 C	85 °C	150 Áin	3.81 Ám	Through Hole	Brass
