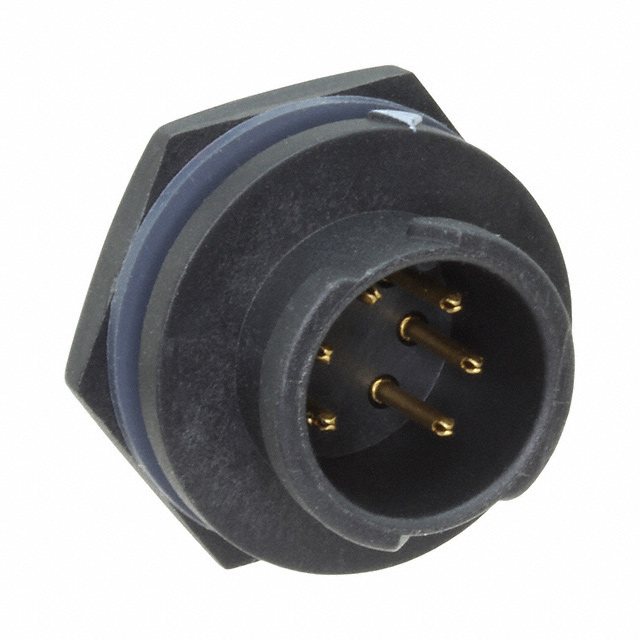

BD-06RMMS-QC8001

Active

Amphenol LTW

CONN RCPT MALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	BD-06RMMS-QC8001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Mounting Feature	Color	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Shielding	Insert Material	Primary Material	Contact Finish - Mating	Shell Size - Insert	Connector Type	Shell Material	Ingress Protection	Voltage Rating	Contact Material	Number of Positions	Orientation	Fastening Type	Current Rating (Amps)
Amphenol LTW BD-06RMMS-QC8001	Bulkhead - Rear Side Nut	Black	-40 °C	105 ░C	UL94 V-0	Unshielded	Polyamide (PA) Nylon Glass Filled	Plastic	Gold	B	Male Pins Receptacle	Glass Filled Nylon Polyamide (PA)	IP68 - Dust Tight Waterproof	300 VAC	Copper Alloy	6	Keyed	Push-Pull	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (Data) Position Circular Connector Receptacle, Male Pins Solder Cup
