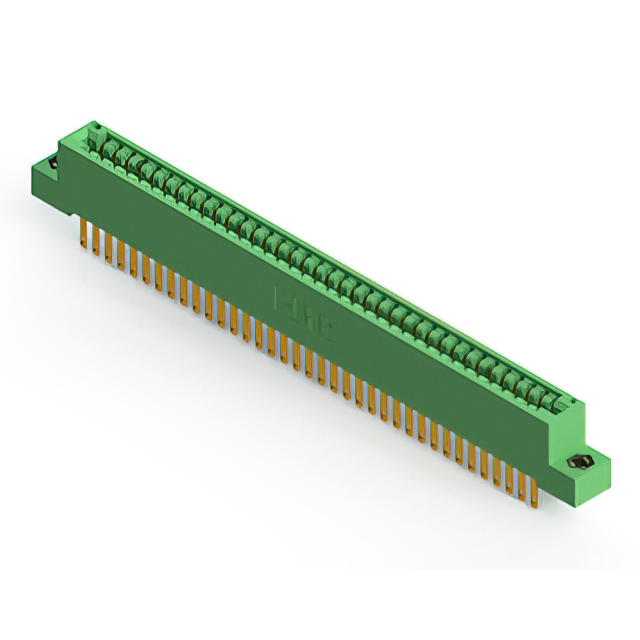

346-074-500-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 74POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-074-500-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 74POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-074-500-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 74 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
346-074 Series
...
| Part | Contact Finish | Flange Feature | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Material - Insulation | Color | Mounting Type | Contact Type | Number of Rows | Contact Material | Read Out | Gender | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Termination | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 37 | 37 | 37 | 74 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Polyester Thermoplastic | Green | Through Hole Right Angle | Cantilever | 2 | Copper Alloy | Dual | Female | 2 | 10 Áin | 0.25 Ám | Solder Wire Wrap | Non Specified - Dual Edge | |||
EDAC Inc. | Gold | Flush Mount Side Opening Unthreaded | 37 | 37 | 37 | 74 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Polyester Thermoplastic | Green | Through Hole | Cantilever | 2 | Copper Alloy | Dual | Female | 2 | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Dual Edge | 3.25 mm | 0.128 " | |
EDAC Inc. | Gold | Floating Bobbin Flush Mount | 37 | 37 | 37 | 74 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Polyester Thermoplastic | Green | Through Hole | Cantilever | 2 | Copper Alloy | Dual | Female | 2 | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Non Specified - Dual Edge | 2.95 mm | 0.116 in | |
EDAC Inc. | Gold | Flush Mount Top Opening Unthreaded | 37 | 37 | 37 | 74 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Polyester Thermoplastic | Green | Through Hole Right Angle | Cantilever | 2 | Copper Alloy | Dual | Female | 2 | 10 Áin | 0.25 Ám | Solder Wire Wrap | Non Specified - Dual Edge | 3.25 mm | 0.128 " | |
EDAC Inc. | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 37 | 37 | 37 | 74 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Polyester Thermoplastic | Green | Through Hole | Cantilever | 2 | Copper Alloy | Dual | Female | 2 | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Non Specified - Dual Edge | |||
EDAC Inc. | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 37 | 37 | 37 | 74 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Polyester Thermoplastic | Green | Through Hole | Cantilever | 2 | Copper Alloy | Dual | Female | 2 | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Dual Edge | Card Guides | ||
EDAC Inc. | Gold | 37 | 37 | 37 | 74 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Polyester Thermoplastic | Green | Through Hole Right Angle | Cantilever | 2 | Copper Alloy | Dual | Female | 2 | 10 Áin | 0.25 Ám | Solder Wire Wrap | Non Specified - Dual Edge | ||||
EDAC Inc. | Gold | Top Mount Opening Unthreaded | 37 | 37 | 37 | 74 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Polyester Thermoplastic | Green | Through Hole | Cantilever | 2 | Copper Alloy | Dual | Female | 2 | 10 Áin | 0.25 Ám | Solder | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |
EDAC Inc. | Gold | M3 Threaded Insert Top Mount Opening | 37 | 37 | 37 | 74 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Polyester Thermoplastic | Green | Board Edge Straddle Mount | Cantilever | 2 | Copper Alloy | Dual | Female | 2 | 10 Áin | 0.25 Ám | Solder | Non Specified - Dual Edge | Card Extender | ||
EDAC Inc. | Gold | Flush Mount Side Opening Unthreaded | 37 | 37 | 37 | 74 | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Polyester Thermoplastic | Green | Through Hole | Cantilever | 2 | Copper Alloy | Dual | Female | 2 | 10 Áin | 0.25 Ám | Solder | Non Specified - Dual Edge | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 15.91 | |
Description
General part information
346-074 Series
74 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
