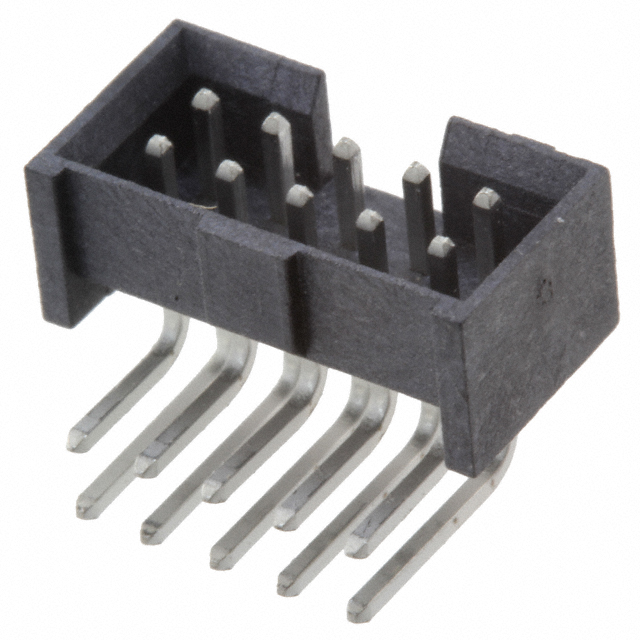

LTMM-105-02-T-D-RA

Active

Samtec Inc.

CONN HEADER R/A 10POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLTMM Datasheet LTMM Series Other Related Documents 01 +2

LTMM-105-02-T-D-RA

Active

Samtec Inc.

CONN HEADER R/A 10POS 2MM

Deep-Dive with AI

DocumentsLTMM Datasheet LTMM Series Other Related Documents 01 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTMM-105-02-T-D-RA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	6.03 mm
Insulation Height	0.237 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

LTMM-105 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Shape	Contact Material	Features	Termination	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Number of Rows	Connector Type	Insulation Material	Insulation Color	Number of Positions	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. LTMM-105-02-S-D	-55 °C	125 °C	Male Pin	Gold	4.83 mm	0.19 in	Square	Phosphor Bronze	Keying Slot	Solder	Through Hole	30 Áin	0.76 Ám	Tin	3.05 mm	0.12 in	All	Push-Pull	0.079 in	2 mm	0.117 in	2.97 mm	2	Header	Liquid Crystal Polymer (LCP)	Black	10	Shrouded - 4 Wall	0.079 in	2 mm
Samtec Inc. LTMM-105-01-F-D	-55 °C	105 ░C	Male Pin	Gold	4.83 mm	0.19 in	Square	Phosphor Bronze	Keying Slot	Solder	Through Hole	3 µin	0.076 µm	Tin	2.54 mm	0.1 in	All	Push-Pull	0.079 in	2 mm	0.09 "	2.29 mm	2	Header	Liquid Crystal Polymer (LCP)	Black	10	Shrouded - 4 Wall	0.079 in	2 mm
Samtec Inc. LTMM-105-01-L-D	-55 °C	105 ░C	Male Pin	Gold	4.83 mm	0.19 in	Square	Phosphor Bronze	Keying Slot	Solder	Through Hole	10 çin	0.25 çm	Tin	2.54 mm	0.1 in	All	Push-Pull	0.079 in	2 mm	0.09 "	2.29 mm	2	Header	Liquid Crystal Polymer (LCP)	Black	10	Shrouded - 4 Wall	0.079 in	2 mm
Samtec Inc. LTMM-105-01-L-D-SM-LC-03	-55 °C	105 ░C	Male Pin	Gold	4.83 mm	0.19 in	Square	Phosphor Bronze	Board Lock Keying Slot	Solder	Surface Mount	10 çin	0.25 çm	Tin	2.54 mm	0.1 in		Push-Pull	0.079 in	2 mm			2	Header	Liquid Crystal Polymer (LCP)	Black	10	Shrouded - 4 Wall	0.079 in	2 mm	9
Samtec Inc. LTMM-105-02-T-D-RA	-55 °C	105 ░C	Male Pin		6.03 mm	0.237 in	Square	Phosphor Bronze	Keying Slot	Solder	Through Hole Right Angle			Tin	3.05 mm	0.12 in	All	Push-Pull	0.079 in	2 mm	0.09 "	2.29 mm	2	Header	Liquid Crystal Polymer (LCP)	Black	10	Shrouded - 4 Wall	0.079 in	2 mm
Samtec Inc. LTMM-105-02-L-D-SM-LC	-55 °C	105 ░C	Male Pin	Gold	4.83 mm	0.19 in	Square	Phosphor Bronze	Board Lock Keying Slot	Solder	Surface Mount	10 çin	0.25 çm	Tin	3.05 mm	0.12 in	All	Push-Pull	0.079 in	2 mm			2	Header	Liquid Crystal Polymer (LCP)	Black	10	Shrouded - 4 Wall	0.079 in	2 mm
Samtec Inc. LTMM-105-02-S-D-SM-K	-55 °C	105 ░C	Male Pin	Gold	4.83 mm	0.19 in	Square	Phosphor Bronze	Keying Slot Pick and Place	Solder	Surface Mount	30 Áin	0.76 Ám	Tin	3.05 mm	0.12 in	All	Push-Pull	0.079 in	2 mm			2	Header	Liquid Crystal Polymer (LCP)	Black	10	Shrouded - 4 Wall	0.079 in	2 mm
Samtec Inc. LTMM-105-02-L-D-SM-09-K-TR	-55 °C	105 ░C	Male Pin	Gold	4.83 mm	0.19 in	Square	Phosphor Bronze	Keying Slot Pick and Place	Solder	Surface Mount	10 çin	0.25 çm	Tin	3.05 mm	0.12 in	All	Push-Pull	0.079 in	2 mm			2	Header	Liquid Crystal Polymer (LCP)	Black	10	Shrouded - 4 Wall	0.079 in	2 mm
Samtec Inc. LTMM-105-01-S-D-SM	-55 °C	105 ░C	Male Pin	Gold	4.83 mm	0.19 in	Square	Phosphor Bronze	Keying Slot	Solder	Surface Mount	30 Áin	0.76 Ám	Tin	2.54 mm	0.1 in	All	Push-Pull	0.079 in	2 mm			2	Header	Liquid Crystal Polymer (LCP)	Black	10	Shrouded - 4 Wall	0.079 in	2 mm
Samtec Inc. LTMM-105-02-G-D	-55 °C	125 °C	Male Pin	Gold	4.83 mm	0.19 in	Square	Phosphor Bronze	Keying Slot	Solder	Through Hole	20 µin	0.51 µm	Gold	3.05 mm	0.12 in	All	Push-Pull	0.079 in	2 mm	0.117 in	2.97 mm	2	Header	Liquid Crystal Polymer (LCP)	Black	10	Shrouded - 4 Wall	0.079 in	2 mm		3 µin	0.076 µm
