SR2090PTHC0G

Unknown

Taiwan Semiconductor Corporation

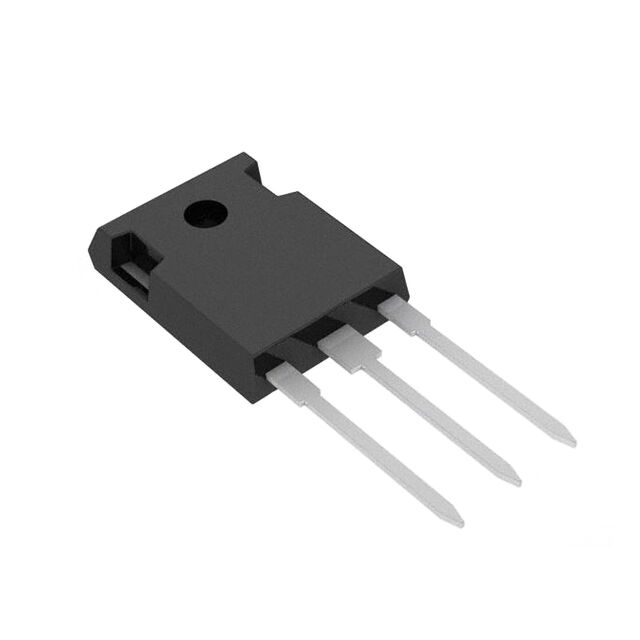

DIODE ARRAY GP 90V 20A TO247AD

Search across all available documentation for this part.

Unknown

Taiwan Semiconductor Corporation

DIODE ARRAY GP 90V 20A TO247AD

Technical Specifications

Parameters and characteristics for this part

Specification	SR2090PTHC0G

Current - Average Rectified (Io) (per Diode)	20 A
Diode Configuration	1 Pair Common Cathode
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-247-3
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Supplier Device Package	TO-247AD (TO-3P)
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	920 mV

Part	Diode Configuration	Qualification	Voltage - Forward (Vf) (Max) @ If	Grade	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Package / Case	Supplier Device Package	Speed	Mounting Type
Taiwan Semiconductor Corporation SR2090PTHC0G	1 Pair Common Cathode	AEC-Q101	920 mV	Automotive	20 A	150 °C	-55 °C	Standard	TO-247-3	TO-247AD (TO-3P)	200 mA 500 ns	Through Hole
Taiwan Semiconductor Corporation SR2090HC0G	1 Pair Common Cathode	AEC-Q101	900 mV	Automotive	20 A	150 °C	-55 °C	Schottky	TO-220-3	TO-220AB	200 mA 500 ns	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 1 Pair Common Cathode 90 V 20A Through Hole TO-247-3
