C14630F0030004

Active

Amphenol Tuchel Industrial

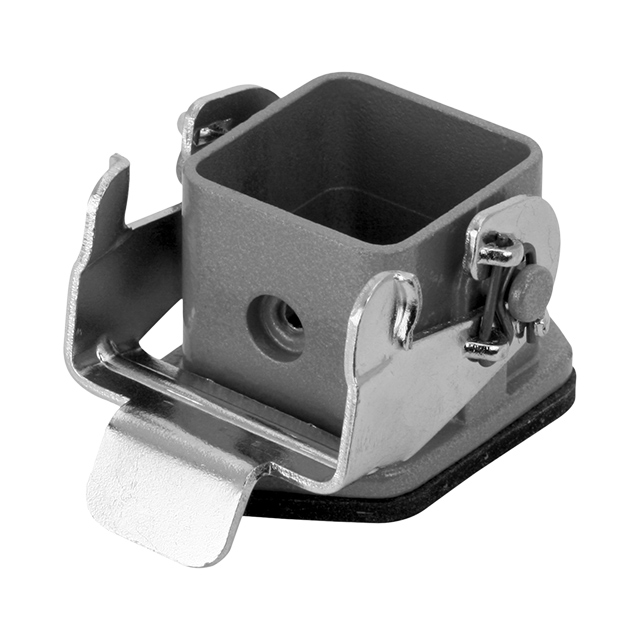

CONN BASE BOTTOM ENTRY SZA3/4

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZA3/4

Technical Specifications

Parameters and characteristics for this part

Specification	C14630F0030004

Connector Type	Base - Panel Mount
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A3/4
Size / Dimension [x]	28 mm
Size / Dimension [x]	1.102 in
Size / Dimension [y]	1.594 in
Size / Dimension [y]	40.5 mm
Size / Dimension [z]	22 mm
Size / Dimension [z]	0.866 "
Style	Bottom Entry

Part	Lock Location	Connector Type	Style	Ingress Protection	Housing Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]
Amphenol Tuchel Industrial C14630F0030004	Locking Clip (1) on Base Bottom	Base - Panel Mount	Bottom Entry	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	28 mm	1.594 in	40.5 mm	22 mm	0.866 "	1.102 in	A3/4	100 °C	-40 °C
Amphenol Tuchel Industrial C14630F0030044	Locking Clip (1) on Base Bottom	Base - Panel Mount 90°	Bottom Entry	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	40 mm	1.094 "			1.024 in	1.575 in	A3/4	100 °C	-40 °C	26 mm	27.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry A3/4 IP65 - Dust Tight, Water Resistant
