98123.1
ActiveConta-Clip, Inc.

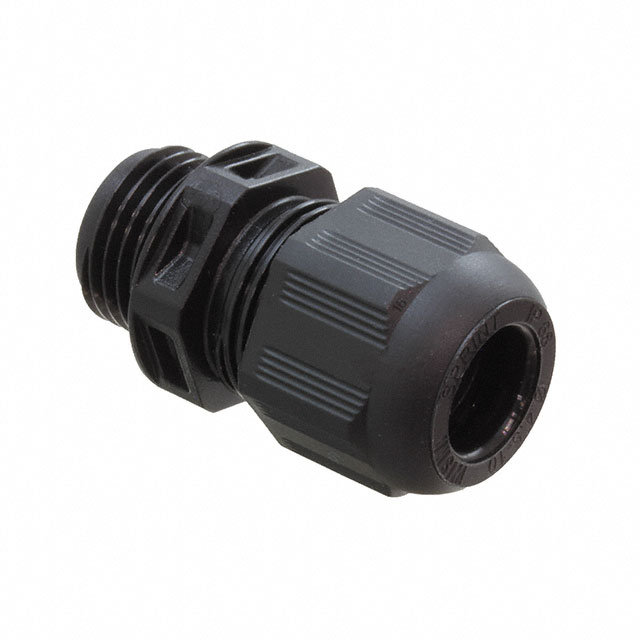

CABLE GLAND 4.5-10MM M16
Deep-Dive with AI
Search across all available documentation for this part.
98123.1
ActiveConta-Clip, Inc.
CABLE GLAND 4.5-10MM M16
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 98123.1 |
|---|---|
| Color | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material | Polyamide (PA), Nylon |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.394 " |
| Outside Cable Diameter (Max) [Max] [diameter] | 10 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.177 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 4.5 mm |
| Panel Hole Size | 0.63 in |
| Panel Hole Size | 16 mm |
| Thread Length | 0.35 " |
| Thread Length | 8.89 mm |
| Thread Size | M16x1.5 |
| Type | Cable Gland |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.22 | |
| 10 | $ 1.04 | |||
| 25 | $ 0.97 | |||
| 50 | $ 0.93 | |||
| 100 | $ 0.88 | |||
| 250 | $ 0.83 | |||
| 500 | $ 0.79 | |||
| 1000 | $ 0.75 | |||
| 2500 | $ 0.70 | |||
Description
General part information
98123 Series
Cable Gland Polyamide (PA), Nylon M16x1.5 Black
Documents
Technical documentation and resources
No documents available
