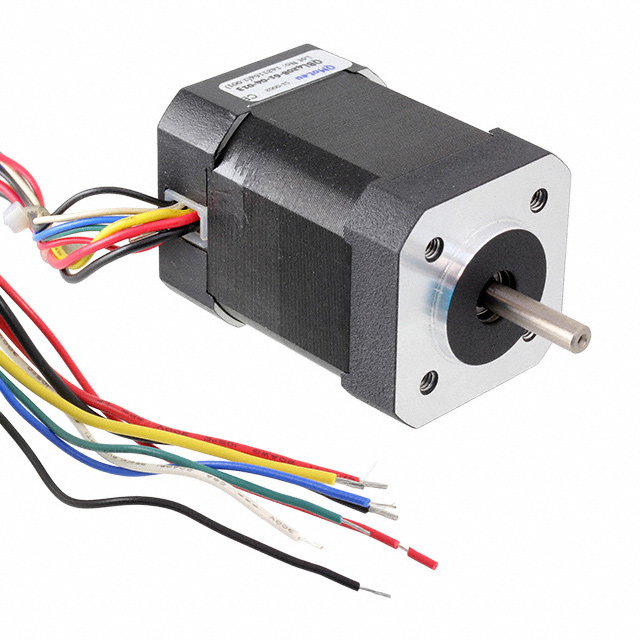

QBL4208-61-04-013
ActiveAnalog Devices Inc./Maxim Integrated
STANDARD MOTOR 4000 RPM 24V
Deep-Dive with AI
Search across all available documentation for this part.
QBL4208-61-04-013
ActiveAnalog Devices Inc./Maxim Integrated
STANDARD MOTOR 4000 RPM 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | QBL4208-61-04-013 | QBL4208 Series |
|---|---|---|
| Diameter - Shaft [diameter] | 0.197 in | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm | 5 mm |
| Encoder Type | - | Incremental |
| Function | Standard | Standard |
| Length - Shaft and Bearing | 0.866 in | 0.866 in |
| Length - Shaft and Bearing | 22 mm | 22 mm |
| Motor Type | Brushless (BLDC) | Brushless (BLDC) |
| Mounting Hole Spacing | 36 mm | 36 mm |
| Mounting Hole Spacing | 1.417 in | 1.417 in |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Power - Rated | 52.4 W | 26.2 - 77.5 W |
| RPM | 4000 RPM | 4000 RPM |
| Size / Dimension [x] | 42 mm | 42 mm |
| Size / Dimension [x] | 1.654 in | 1.654 in |
| Size / Dimension [y] | 1.654 " | 1.654 " |
| Size / Dimension [y] | 42 mm | 42 mm |
| Termination Style | Wire Leads | Wire Leads |
| Torque - Max Momentary (oz-in / mNm) | 380 mNm | 190 - 750 mNm |
| Torque - Max Momentary (oz-in / mNm) | 53.82 oz-in | 26.91 - 106.2 oz-in |
| Torque - Rated (oz-in / mNm) | 17.7 oz-in | 17.7 - 35.4 oz-in |
| Torque - Rated (oz-in / mNm) | 125 mNm | 18.41 - 250 mNm |
| Torque - Rated (oz-in / mNm) | - | 130 mNm |
| Type | DC Motor | DC Motor |
| Voltage - Rated | 24 VDC | 24 VDC |
| Weight | 450 g | 1.8 - 680.4 g |
| Weight | 0.984 lb | 0.662 - 1.5 lb |
| Weight | - | 816.5 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 122.52 | |
| 1 | $ 123.63 | |||
| 5 | $ 112.59 | |||
| 5 | $ 113.62 | |||
| 10 | $ 109.56 | |||
| 10 | $ 108.57 | |||
| 25 | $ 103.47 | |||
| 25 | $ 104.42 | |||
| 50 | $ 101.51 | |||
| 50 | $ 101.51 | |||
QBL4208 Series
STANDARD MOTOR 4000 RPM 24V
| Part | Termination Style | Voltage - Rated | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Motor Type | Mounting Hole Spacing | Mounting Hole Spacing | RPM | Encoder Type | Function | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Operating Temperature [Min] | Operating Temperature [Max] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Length - Shaft and Bearing | Length - Shaft and Bearing | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Type | Torque - Rated (oz-in / mNm) | Weight | Weight | Power - Rated | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated QBL4208-100-04-025-1K | Wire Leads | 24 VDC | 42 mm | 1.654 " | 1.654 in | 42 mm | Brushless (BLDC) | 36 mm | 1.417 in | 4000 RPM | Incremental | Standard | 106.2 oz-in | 750 mNm | -20 C | 40 °C | 0.197 in | 5 mm | 0.866 in | 22 mm | 35.4 oz-in | 250 mNm | DC Motor | |||||
Analog Devices Inc./Maxim Integrated QBL4208-61-04-013-1K | Wire Leads | 24 VDC | 42 mm | 1.654 " | 1.654 in | 42 mm | Brushless (BLDC) | 36 mm | 1.417 in | 4000 RPM | Incremental | Standard | 53.82 oz-in | 380 mNm | -20 C | 40 °C | 0.197 in | 5 mm | 0.866 in | 22 mm | 18.41 oz-in | DC Motor | 130 mNm | |||||
Analog Devices Inc./Maxim Integrated QBL4208-81-04-019 | Wire Leads | 24 VDC | 42 mm | 1.654 " | 1.654 in | 42 mm | Brushless (BLDC) | 36 mm | 1.417 in | 4000 RPM | Standard | 79.31 oz-in | 560 mNm | -20 C | 40 °C | 0.197 in | 5 mm | 0.866 in | 22 mm | 26.2 oz-in | 185 mNm | DC Motor | 1.5 lb | 680.4 g | 77.5 W | |||
Analog Devices Inc./Maxim Integrated QBL4208-61-04-013 | Wire Leads | 24 VDC | 42 mm | 1.654 " | 1.654 in | 42 mm | Brushless (BLDC) | 36 mm | 1.417 in | 4000 RPM | Standard | 53.82 oz-in | 380 mNm | -20 C | 40 °C | 0.197 in | 5 mm | 0.866 in | 22 mm | 17.7 oz-in | 125 mNm | DC Motor | 0.984 lb | 450 g | 52.4 W | |||
Analog Devices Inc./Maxim Integrated QBL4208-41-04-006 | Wire Leads | 24 VDC | 42 mm | 1.654 " | 1.654 in | 42 mm | Brushless (BLDC) | 36 mm | 1.417 in | 4000 RPM | Standard | 26.91 oz-in | 190 mNm | -20 C | 40 °C | 0.197 in | 5 mm | 0.866 in | 22 mm | DC Motor | 0.662 lb | 300.28 g | 26.2 W | |||||
Analog Devices Inc./Maxim Integrated QBL4208-100-04-025 | Wire Leads | 24 VDC | 42 mm | 1.654 " | 1.654 in | 42 mm | Brushless (BLDC) | 36 mm | 1.417 in | 4000 RPM | Standard | 106.2 oz-in | 750 mNm | -20 C | 40 °C | 0.197 in | 5 mm | 0.866 in | 22 mm | 35.4 oz-in | 250 mNm | DC Motor | 1.8 lbs | 816.5 g |
Description
General part information
QBL4208 Series
Brushless (BLDC) DC Motor Standard 4000 RPM 52.4W 24VDC
