5122FN 002500

Active

Belden Inc.

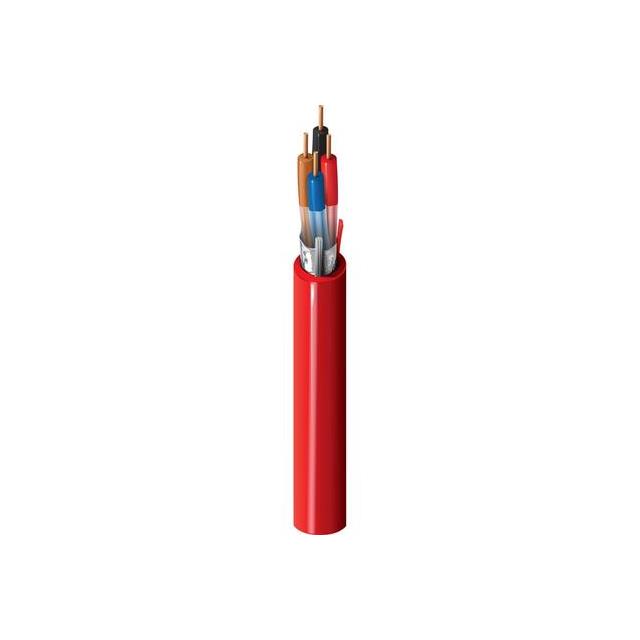

CABLE 4COND 14AWG RED SHLD 500'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 14AWG RED SHLD 500'

Technical Specifications

Parameters and characteristics for this part

Specification	5122FN 002500

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.348 in
Jacket (Insulation) Diameter [diameter]	8.84 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Red
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Ratings	UL Style NPLF
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Alarm, Safety
Voltage	150 V
Wire Gauge	13.5 AWG

Part	Conductor Strand	Conductor Material	Conductor Insulation	Jacket (Insulation) Material	Length [x]	Length [x]	Shield Coverage	Usage	Wire Gauge	Features	Number of Conductors	Jacket Color	Voltage	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Shield Material	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 5122FN 002500	Solid	Copper Bare	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	100 %	Alarm Safety	13.5 AWG	Drain Wire Rip Cord	4	Red	150 V	Foil	1.067 mm	0.042 in	UL Style NPLF	Aluminum	Multi-Conductor	0.348 in	8.84 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Conductor Multi-Conductor Cable Red 14 AWG Foil 500.0' (152.4m)
