Q-0J0710005012i

Active

Amphenol Custom Cable

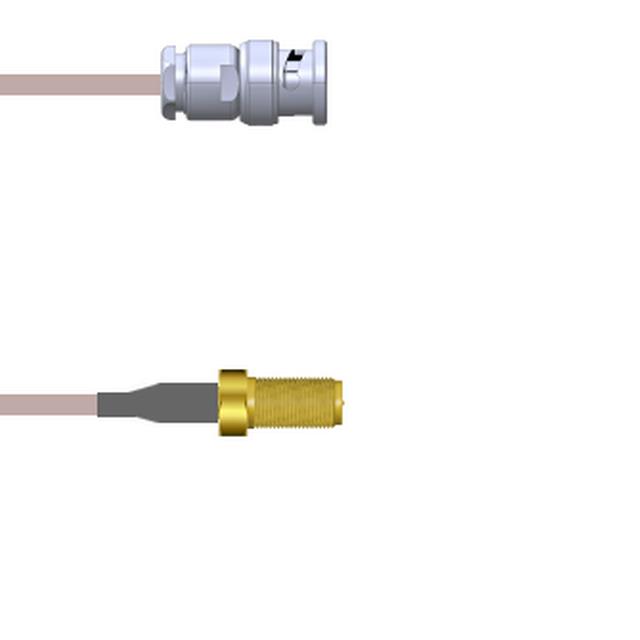

CBL ASSY RPSMA-BNC JACK-PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J0710005012i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-BNC JACK-PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J0710005012i

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	RP-SMA to BNC

Q-0J0710 Series

Part	2nd Contact Gender	1st Connector	Frequency - Max [Max]	Length	Length	Style	Cable Type	Overall Impedance	Features	1st Contact Gender	2nd Connector	Color	2nd Connector Mounting Type	1st Connector Mounting Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0J0710003009i	Male	RP-SMA Jack	4 GHz	9 "	228.6 mm	RP-SMA to BNC	RG-174	50 Ohms	Shielded	Male	BNC Plug	Black	Free Hanging (In-Line)	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J0710005012i	Male	RP-SMA Jack	4 GHz	12 "	304.8 mm	RP-SMA to BNC	RG-316	50 Ohms	Shielded	Male	BNC Plug	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J0710005003M	Male	RP-SMA Jack	4 GHz	118.1 in	3 m	RP-SMA to BNC	RG-316	50 Ohms	Shielded	Male	BNC Plug	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	9.8 '
Amphenol Custom Cable Q-0J0710005084i	Male	RP-SMA Jack	4 GHz	84 in	2.1 m	RP-SMA to BNC	RG-316	50 Ohms	Shielded	Male	BNC Plug	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	7 ft
Amphenol Custom Cable Q-0J0710005009i	Male	RP-SMA Jack	4 GHz	9 "	228.6 mm	RP-SMA to BNC	RG-316	50 Ohms	Shielded	Male	BNC Plug	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J0710005018i	Male	RP-SMA Jack	4 GHz			RP-SMA to BNC	RG-316	50 Ohms	Shielded	Male	BNC Plug	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0J0710005002M	Male	RP-SMA Jack	4 GHz	78.7 in	2 m	RP-SMA to BNC	RG-316	50 Ohms	Shielded	Male	BNC Plug	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	6.6 ft
Amphenol Custom Cable Q-0J0710003003M	Male	RP-SMA Jack	4 GHz	118.1 in	3 m	RP-SMA to BNC	RG-174	50 Ohms	Shielded	Male	BNC Plug	Black	Free Hanging (In-Line)	Free Hanging (In-Line)	9.8 '
Amphenol Custom Cable Q-0J0710005072i	Male	RP-SMA Jack	4 GHz	72 in	1.8 m	RP-SMA to BNC	RG-316	50 Ohms	Shielded	Male	BNC Plug	Copper	Free Hanging (In-Line)	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-0J0710003024i	Male	RP-SMA Jack	4 GHz	24 "	609.6 mm	RP-SMA to BNC	RG-174	50 Ohms	Shielded	Male	BNC Plug	Black	Free Hanging (In-Line)	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 73.06
		25	$ 71.64
		50	$ 70.22
		100	$ 68.80
		250	$ 67.38

Description

General part information

Q-0J0710 Series

Cable Assembly Coaxial RP-SMA to BNC RG-316 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
