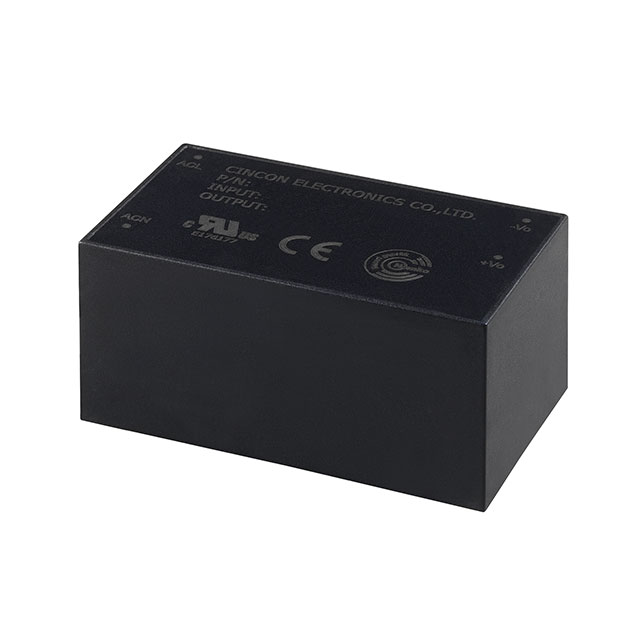

CFM25S150-E
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 15V 25W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CFM25S150-E
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 15V 25W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM25S150-E |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Approval Agency | cURus, FCC, NEMKO, CE |
| Current - Output (Max) [Max] | 1.67 A |
| Efficiency | 85 % |
| Features | Universal Input |
| Line Regulation | 1 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 25 W |
| Size / Dimension [x] | 2.09 in |
| Size / Dimension [x] | 53.1 mm |
| Size / Dimension [y] | 30.3 mm |
| Size / Dimension [y] | 1.19 " |
| Size / Dimension [z] | 0.98 in |
| Size / Dimension [z] | 24.8 mm |
| Standard Number | 60335-1, 60950-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.88 | |
| 5 | $ 20.25 | |||
| 10 | $ 19.65 | |||
| 25 | $ 19.06 | |||
| 50 | $ 16.64 | |||
Description
General part information
CFM25S150 Series
Enclosed AC DC Converters 1 Output 15V 1.67A 90 ~ 264 VAC Input
