82-4551.2134
ActiveEAO

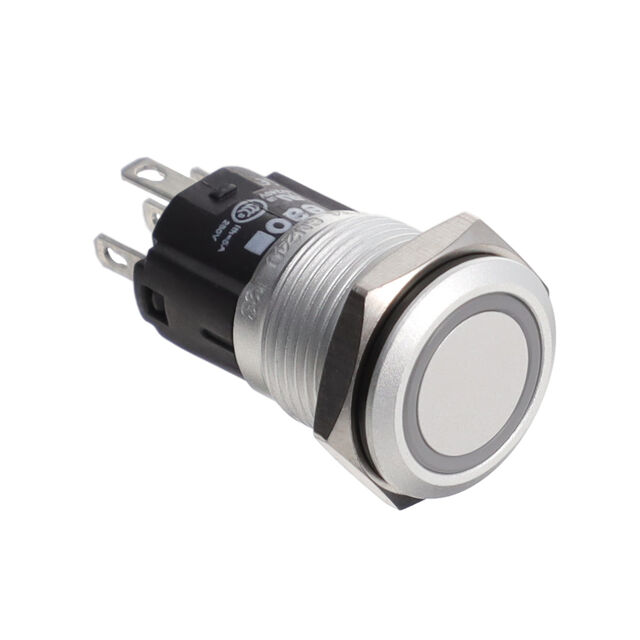

SWITCH PB SPDT 3A 240V
Deep-Dive with AI
Search across all available documentation for this part.
82-4551.2134
ActiveEAO
SWITCH PB SPDT 3A 240V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 82-4551.2134 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 3 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 24 VAC/DC |
| Ingress Protection | IP67, IP65 |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 240 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.55 | |
| 10 | $ 22.29 | |||
| 100 | $ 19.41 | |||
82-4551 Series
SWITCH PB SPDT 3A 240V
| Part | Mounting Type | Electrical Life | Mechanical Life | Type | Switch Function | Panel Cutout Dimensions [diameter] | Illumination Voltage (Nominal) | Termination Style | Termination Style | Termination Style | Illumination Type, Color | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Circuit | Actuator Type | Voltage Rating - DC | Color - Actuator/Cap | Voltage Rating - AC | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 82-4551.2134 | Panel Mount, Front | 50000 Cycles | 500000 Cycles | Illuminated, Standard | On-On | 16 mm | 24 VAC/DC | 0.11 in | Quick Connect, Solder | 2.8 mm | Green, LED | 3 A | 70 °C | -30 ░C | IP65, IP67 | SPDT | Button, Flush, Round | 240 V | Silver | 240 V | No Marking |
Description
General part information
82-4551 Series
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
