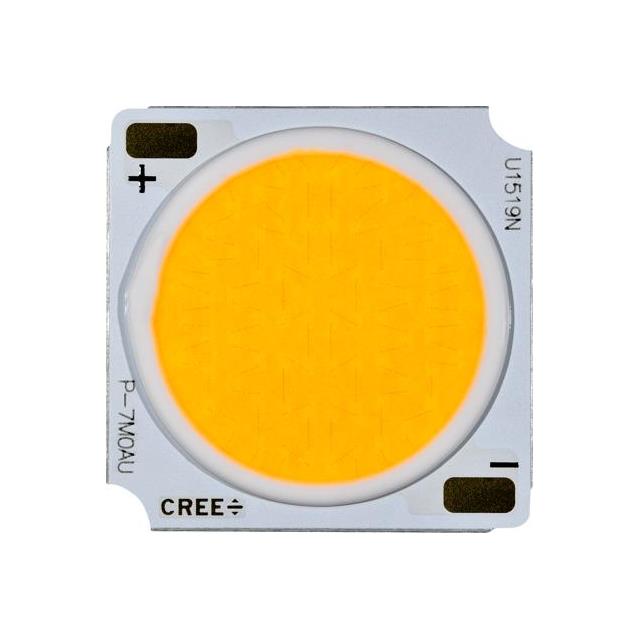

CMU1519-R090-00PN0Z0A30H

Active

Cree LED

XLAMP CMU LED WHITE PRO9

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMU1519-R090-00PN0Z0A30H

Active

Cree LED

XLAMP CMU LED WHITE PRO9

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMU1519-R090-00PN0Z0A30H

Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	95
Current - Max [Max]	1.44 A
Current - Test	540 mA
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	14.5 mm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.7 V

CMU1519 Series

...

Part	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Current - Test	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Configuration	Height [z]	Light Emitting Surface (LES) [diameter]	Current - Max [Max]	Type	Temperature - Test	Lumens/Watt @ Current - Test	Color	CCT (K)	CRI (Color Rendering Index)	Lens Type	CCT (K)
Cree LED CMU1519-R090-000N0H0A57G	19 mm	19 mm	115 °	540 mA	3030 lm	34.4 V	Square	1.5 mm	14.5 mm	1.44 A	Chip On Board (COB)	85 °C	163 lm/W	Cool White	5700 K	80	Flat
Cree LED CMU1519-0000-000N0U0A27G	19 mm	19 mm	115 °	540 mA	2436 lm	33.7 V	Square	1.5 mm	14.5 mm	1.44 A	Chip On Board (COB)	85 °C		Warm White	2700 K	90	Flat
Cree LED CMU1519-R090-000N0Z0A40H	19 mm	19 mm	115 °	540 mA	2322 lm	34.4 V	Square	1.5 mm	14.5 mm	1.44 A	Chip On Board (COB)	85 °C	125 lm/W	Neutral White	4000 K	95	Flat
Cree LED CMU1519-R090-00PN0Z0A40H	19 mm	19 mm	115 °	540 mA		33.7 V	Square	1.5 mm	14.5 mm	1.44 A	Chip On Board (COB)	85 °C		Neutral White	4000 K	95	Flat
Cree LED CMU1519-R090-000N0Z0A27H	19 mm	19 mm	115 °	540 mA	2137 lm	34.4 V	Square	1.5 mm	14.5 mm	1.44 A	Chip On Board (COB)	85 °C	115 lm/W	Warm White	2700 K	95	Flat
Cree LED CMU1519-R090-00PN0Z0A30H	19 mm	19 mm	115 °	540 mA		33.7 V	Square	1.5 mm	14.5 mm	1.44 A	Chip On Board (COB)	85 °C		Warm White		95	Flat
Cree LED CMU1519-0000-000N0U0A50G	19 mm	19 mm	115 °	540 mA	2596 lm	33.7 V	Square	1.5 mm	14.5 mm	1.44 A	Chip On Board (COB)	85 °C	143 lm/W	Cool White		90	Flat
Cree LED CMU1519-0000-000N0B0A50E	19 mm	19 mm	115 °	540 mA	3302 lm	33.7 V	Square	1.5 mm	14.5 mm	1.44 A	Chip On Board (COB)	85 °C	181 lm/W	Cool White	5000 K	70	Flat	5-Step MacAdam Ellipse
Cree LED CMU1519-0000-000N0U0A35H	19 mm	19 mm	115 °	540 mA	2570 lm	33.7 V	Square	1.5 mm	14.5 mm	1.44 A	Chip On Board (COB)	85 °C	141 lm/W	Warm White	3500 K	90	Flat
Cree LED CMU1519-R090-000N0U0A27G	19 mm	19 mm	115 °	540 mA	2436 lm	34.4 V	Square	1.5 mm	14.5 mm	1.44 A	Chip On Board (COB)	85 °C	131 lm/W	Warm White	2700 K	90	Flat

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	90	$ 9.21

Description

General part information

CMU1519 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMU1519 White, Warm Square
