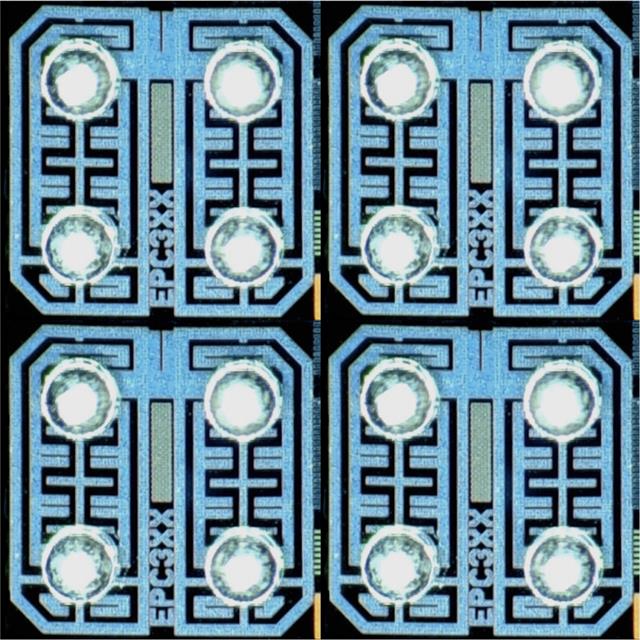

EPC320-CSP16-001

Obsolete

ESPROS Photonics AG

SENSOR PHOTODIODE 850NM 16XFBGA

Search across all available documentation for this part.

Obsolete

ESPROS Photonics AG

SENSOR PHOTODIODE 850NM 16XFBGA

Technical Specifications

Parameters and characteristics for this part

SENSOR PHOTODIODE 850NM 16XFBGA

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Active Area	Wavelength	Package / Case	Viewing Angle	Operating Temperature [Max]	Operating Temperature [Min]	Current - Dark (Typ)	Response Time	Mounting Type	Spectral Range [Max]	Spectral Range [Min]	Responsivity @ nm	Color - Enhanced
ESPROS Photonics AG EPC320-CSP16-001	20 V	3.42 mm²	850 nm	16-XFBGA, CSPBGA	150 °	85 °C	-40 °C	320 pA	300 ns	Surface Mount	1030 nm	400 nm	0.6 A/W	Infrared (NIR), Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Photodiode 850nm 300ns 150° 16-XFBGA, CSPBGA
