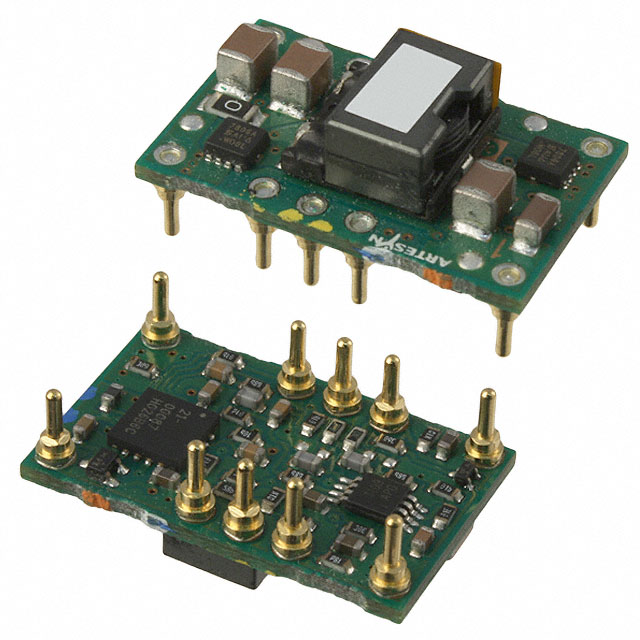

PTH12060WAD

Obsolete

ARTESYN / Advanced Energy

DC DC CONVERTER 1.2-5.5V 55W

Search across all available documentation for this part.

Obsolete

ARTESYN / Advanced Energy

DC DC CONVERTER 1.2-5.5V 55W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 1.2 ~ 5.5V 10A 10.8V - 13.2V Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 1.2-5.5V 55W

Part	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Min) [Min]	Type	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Features	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Mounting Type	Applications	Package / Case	Power (Watts)	Efficiency
ARTESYN / Advanced Energy PTH12060WAD	5.5 V	1.2 V	10.8 V	Non-Isolated PoL Module	1	1 in	0.62 "	25.4 mm	0.35 "	15.7 mm	8.9 mm	Remote On/Off, SCP, UVLO	13.2 V	85 °C	-40 °C	10 A	Through Hole	ITE (Commercial)	10-DIP Module	55 W	94 %
ARTESYN / Advanced Energy PTH12060LAZT	1.8 V	0.8 V	10.8 V	Non-Isolated PoL Module	1	1 in	0.62 "	25.3 mm	0.35 "	15.8 mm	9 mm	Remote On/Off, SCP, UVLO	13.2 V	85 °C	-40 °C	10 A	Surface Mount	ITE (Commercial)	10-SMD Module	55 W	88 %
ARTESYN / Advanced Energy PTH12060LAZ	1.8 V	0.8 V	10.8 V	Non-Isolated PoL Module	1	1 in	0.62 "	25.3 mm	0.35 "	15.8 mm	9 mm	Remote On/Off, SCP, UVLO	13.2 V	85 °C	-40 °C	10 A	Surface Mount	ITE (Commercial)	10-SMD Module	55 W	88 %
ARTESYN / Advanced Energy PTH12060WAZT	5.5 V	1.2 V	10.8 V	Non-Isolated PoL Module	1	1 in	0.62 "	25.3 mm	0.35 "	15.8 mm	9 mm	Remote On/Off, SCP, UVLO	13.2 V	85 °C	-40 °C	10 A	Surface Mount	ITE (Commercial)	10-SMD Module	55 W	94 %
