Q-1T01N0003012i

Active

Amphenol Custom Cable

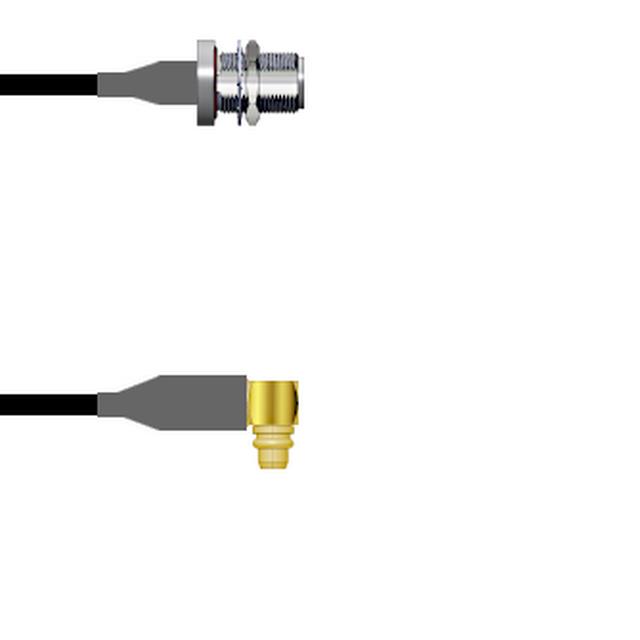

COAX CBL MMCX TO N-TYPE 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T01N0003012i

Active

Amphenol Custom Cable

COAX CBL MMCX TO N-TYPE 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T01N0003012i

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-1T01N0 Series

Part	Length	Length	2nd Contact Gender	1st Connector Mounting Type	1st Contact Gender	Color	Frequency - Max [Max]	Features	Style	Cable Type	2nd Connector	2nd Connector Mounting Type	2nd Connector Mounting Feature	Overall Impedance	Length
Amphenol Custom Cable Q-1T01N0003012i	12 "	304.8 mm	Female	Free Hanging (In-Line)	Male	Black	6000 MHz	Shielded	MMCX to N-Type	RG-174	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	50 Ohms
Amphenol Custom Cable Q-1T01N0005072i	72 in	1.8 m	Female	Free Hanging (In-Line)	Male	Copper	6000 MHz	Shielded	MMCX to N-Type	RG-316	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	6 ft
Amphenol Custom Cable Q-1T01N0005006i	6 in	152.4 mm	Female	Free Hanging (In-Line)	Male	Copper	6000 MHz	Shielded	MMCX to N-Type	RG-316	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	50 Ohms
Amphenol Custom Cable Q-1T01N00051.5M	59.1 in	1.5 m	Female	Free Hanging (In-Line)	Male	Copper	6000 MHz	Shielded	MMCX to N-Type	RG-316	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	4.9 ft
Amphenol Custom Cable Q-1T01N00052.5M	98.4 in	2.5 m	Female	Free Hanging (In-Line)	Male	Copper	6000 MHz	Shielded	MMCX to N-Type	RG-316	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	8.2 '
Amphenol Custom Cable Q-1T01N0005084i	84 in	2.1 m	Female	Free Hanging (In-Line)	Male	Copper	6000 MHz	Shielded	MMCX to N-Type	RG-316	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	7 ft
Amphenol Custom Cable Q-1T01N0005060i	5 '	1.5 m	Female	Free Hanging (In-Line)	Male	Copper	6000 MHz	Shielded	MMCX to N-Type	RG-316	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	5 ft
Amphenol Custom Cable Q-1T01N0005108i	108 in	2.7 m	Female	Free Hanging (In-Line)	Male	Copper	6000 MHz	Shielded	MMCX to N-Type	RG-316	N-Type Jack	Panel Mount	Bulkhead - Front Side Nut	50 Ohms	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 80.74
		25	$ 79.17
		50	$ 77.60
		100	$ 76.03
		250	$ 74.47

Description

General part information

Q-1T01N0 Series

Cable Assembly Coaxial MMCX to N-Type RG-174 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
