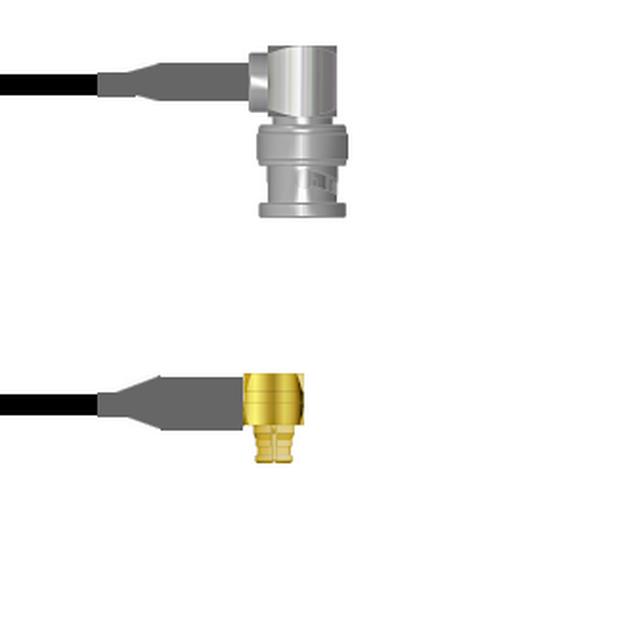

Q-0D04200030.5M

Active

Amphenol Custom Cable

COAX CBL BNC TO SMP 19.6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D04200030.5M

Active

Amphenol Custom Cable

COAX CBL BNC TO SMP 19.6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D04200030.5M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMP Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	BNC to SMP

Q-0D0420 Series

Part	2nd Contact Gender	Color	Style	Frequency - Max [Max]	Cable Type	2nd Connector	Length	Length	Features	Overall Impedance	1st Contact Gender	2nd Connector Mounting Type	1st Connector	1st Connector Mounting Type	Length
Amphenol Custom Cable Q-0D04200030.5M	Male	Black	BNC to SMP	4 GHz	RG-174	SMP Plug Right Angle	50 cm	19.69 "	Shielded	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D0420005072i	Male	Copper	BNC to SMP	4 GHz	RG-316	SMP Plug Right Angle	1.8 m	72 in	Shielded	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-0D0420005012i	Male	Copper	BNC to SMP	4 GHz	RG-316	SMP Plug Right Angle	304.8 mm	12 "	Shielded	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D0420005036i	Male	Copper	BNC to SMP	4 GHz	RG-316	SMP Plug Right Angle	91.44 cm	36 in	Shielded	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D0420005084i	Male	Copper	BNC to SMP	4 GHz	RG-316	SMP Plug Right Angle	2.1 m	84 in	Shielded	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)	7 ft
Amphenol Custom Cable Q-0D0420005003i	Male	Copper	BNC to SMP	4 GHz	RG-316	SMP Plug Right Angle	76.2 mm	3 in	Shielded	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D0420005060i	Male	Copper	BNC to SMP	4 GHz	RG-316	SMP Plug Right Angle	1.5 m	5 '	Shielded	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)	5 ft
Amphenol Custom Cable Q-0D04200052.5M	Male	Copper	BNC to SMP	4 GHz	RG-316	SMP Plug Right Angle	2.5 m	98.4 in	Shielded	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)	8.2 '
Amphenol Custom Cable Q-0D04200051.5M	Male	Copper	BNC to SMP	4 GHz	RG-316	SMP Plug Right Angle	1.5 m	59.1 in	Shielded	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)	4.9 ft
Amphenol Custom Cable Q-0D0420003108i	Male	Black	BNC to SMP	4 GHz	RG-174	SMP Plug Right Angle	2.7 m	108 in	Shielded	50 Ohms	Male	Free Hanging (In-Line)	BNC Plug Right Angle	Free Hanging (In-Line)	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 106.03
		25	$ 103.96
		50	$ 101.89
		100	$ 99.82
		250	$ 97.75

Description

General part information

Q-0D0420 Series

Cable Assembly Coaxial BNC to SMP RG-174 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
