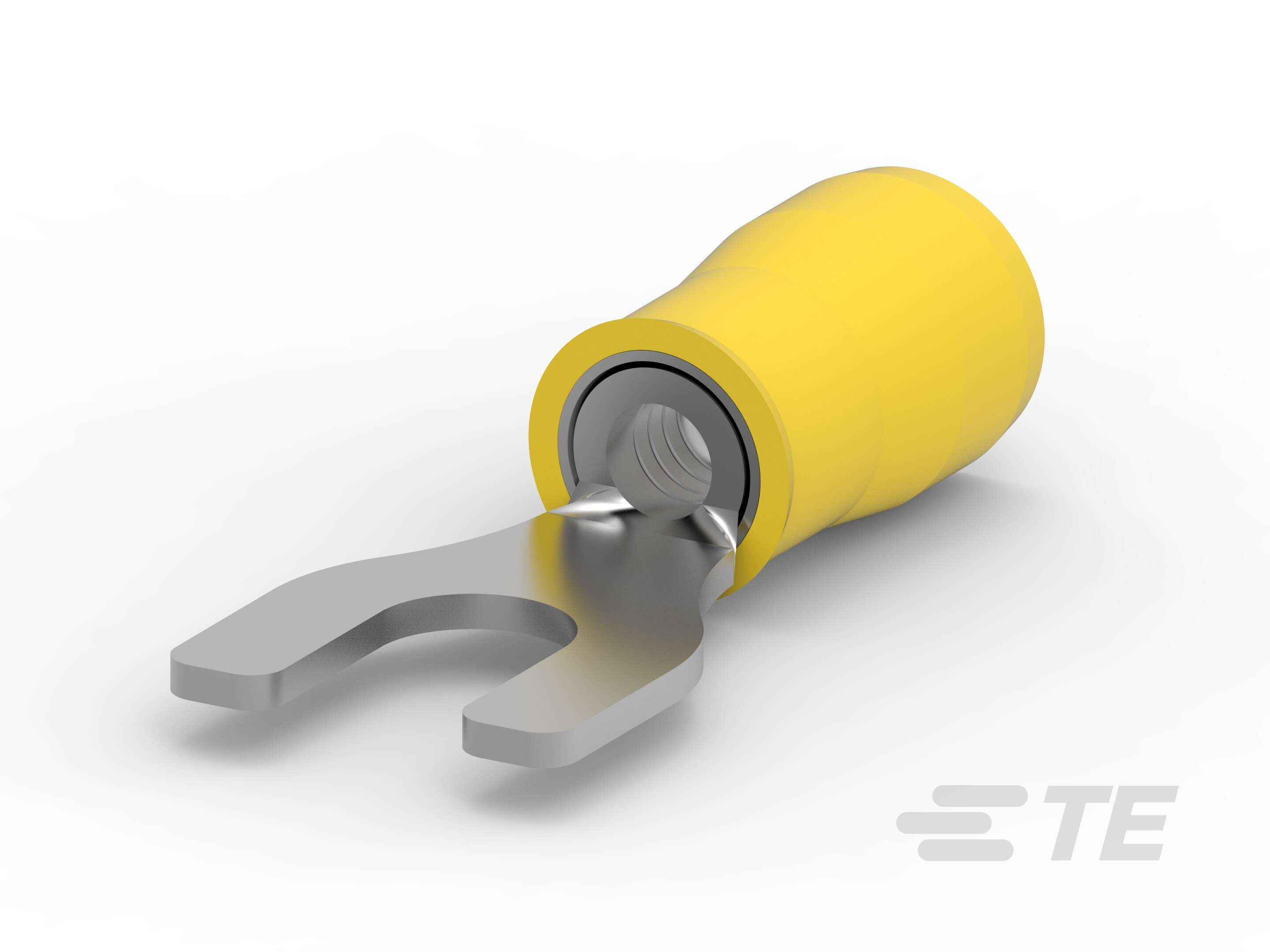

Specification	321035

Color	Yellow
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination
Insulation	Insulated
Insulation Diameter (Max)	0.082 in
Insulation Diameter (Min)	0.05 in
Length - Overall	0.627 in
Length - Ring Center to Termination	0.211 in
Length - Termination	0.331 in
Material - Insulation	Polyamide, PA, Nylon
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	4 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening	0.119 in
Width - Outer Edges	0.203 in
Wire Gauge (AWG) (Max)	26 AWG
Wire Gauge (AWG) (Min)	22 AWG

3210 Series

Part	Contact Material	Length - Overall	Terminal Type	Color	Insulation	Contact Finish	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Features	Stud/Tab Size	Width - Outer Edges	Mounting Type	Termination	Length - Termination	Insulation Diameter (Max)	Insulation Diameter (Min)	Tongue Inside Opening	Length - Ring Center to Termination	Material - Insulation	Thickness	Stud/Tab Size	Wire Gauge	Stud/Tab Size (Type)	Number of Wire Entries
TE Connectivity AMP Connectors 321035	Copper	0.627 in	Standard	Yellow	Insulated	Tin	26 AWG	22 AWG	Serrated Termination	4 Stud	0.203 in	Free Hanging (In-Line)	Crimp	0.331 in	0.082 in	0.05 in	0.119 in	0.211 in	Nylon PA Polyamide
TE Connectivity AMP Connectors 321020	Copper	0.74 in	Circular	Yellow	Insulated	Tin	26 AWG	22 AWG	Serrated Termination	6 Stud	0.25 in	Free Hanging (In-Line)	Crimp		0.082 in	0.05 in			Poly-Vinyl Chloride PVC	0.018 in
TE Connectivity AMP Connectors 321066	Copper	1.733 in	Circular		Non-Insulated	Tin			Brazed Seam Serrated Termination	0.375 in	0.875 in	Free Hanging (In-Line) Right Angle	Crimb Flag							0.07 in	3 Stud 8 Stud	1/0 AWG
TE Connectivity AMP Connectors 321056	Copper		Circular		Non-Insulated	Tin			Brazed Seam	0.3125 in	0.625 in	Free Hanging (In-Line) Right Angle	Crimb Flag							0.045 in	16 Stud 5 Stud	6 AWG	Stud
TE Connectivity AMP Connectors 321060	Copper	1.278 in	Circular		Non-Insulated	Tin			Brazed Seam Serrated Termination	0.3125 in	0.546 in	Free Hanging (In-Line) Right Angle	Crimb Flag							0.048 in	16 Stud 5 Stud	4 AWG	Stud
TE Connectivity AMP Connectors 321017	Copper	0.646 in	Circular	Yellow	Insulated	Tin	26 AWG	22 AWG	Serrated Termination	4 Stud	0.203 in	Free Hanging (In-Line)	Crimp		0.082 in	0.05 in			Poly-Vinyl Chloride PVC	0.018 in
TE Connectivity AMP Connectors 321056	Copper		Circular		Non-Insulated	Tin			Brazed Seam	0.3125 in	0.625 in	Free Hanging (In-Line) Right Angle	Crimb Flag							0.045 in	16 Stud 5 Stud	6 AWG	Stud
TE Connectivity AMP Connectors 321063	Copper	1.437 in	Circular		Non-Insulated	Tin			Brazed Seam Serrated Termination	10 Stud	0.713 in	Free Hanging (In-Line) Right Angle	Crimb Flag							0.057 in		2 AWG
TE Connectivity AMP Connectors 321063	Copper	1.437 in	Circular		Non-Insulated	Tin				10 Stud	0.713 in	Free Hanging (In-Line) Right Angle	Crimb Flag							0.057 in		2 AWG
TE Connectivity AMP Connectors 321024			Butt Splice Individual Openings Inline		Non-Insulated		26 AWG	22 AWG	Serrated Mating Area				Crimp											2
