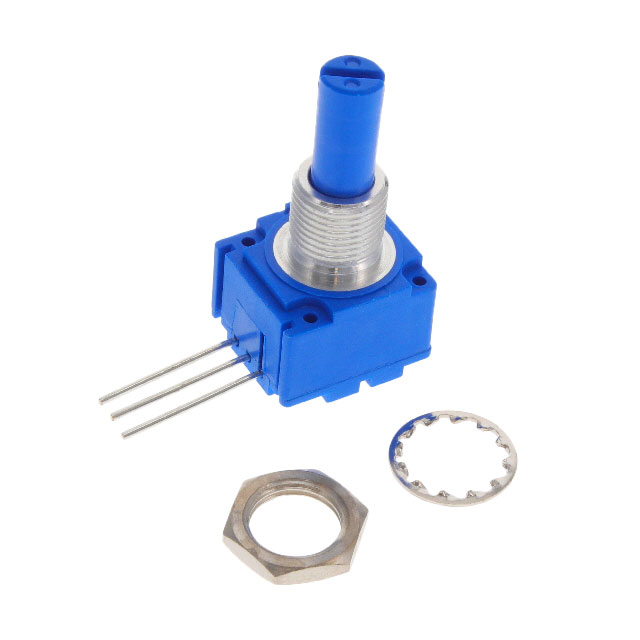

91A1A-B28-E17L

Active

Bourns Inc.

POT 25K OHM 1W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

91A1A-B28-E17L

Active

Bourns Inc.

POT 25K OHM 1W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	91A1A-B28-E17L

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Actuator Length [z]	22.23 mm
Actuator Length [z]	0.875 in
Actuator Type	Slotted
Adjustment Type	Side Adjustment
Built in Switch	False
Bushing Thread	3/8-32
Number of Gangs	1
Number of Turns	1
Power (Watts)	1 W
Resistance (Ohms)	25k
Resistive Material	Conductive Plastic
Rotation	300 ░
Size - Body [x]	0.687 in
Size - Body [x]	17.45 mm
Size - Body [y]	0.625 in
Size - Body [y]	15.88 mm
Taper	Linear
Temperature Coefficient	1000 ppm/°C
Termination Style	PC Pins
Tolerance	10 %

91A1A Series

Part	Resistance (Ohms)	Actuator Type	Temperature Coefficient	Number of Turns	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Termination Style	Taper	Actuator Length [z]	Actuator Length [z]	Tolerance	Rotation	Adjustment Type	Resistive Material	Power (Watts)	Bushing Thread	Number of Gangs	Actuator Diameter	Actuator Diameter [diameter]	Power (Watts)	Resistance (Ohms)	Actuator Length [x]	Actuator Length [x]
Bourns Inc. 91A1A-A24-A10L	1 kOhms	Round	150 ppm/°C	1	0.687 in	0.625 in	17.45 mm	15.88 mm	PC Pins	Linear	19.05 mm	0.75 in	10 %	300 ░	Side Adjustment	Cermet	2 W	3/8-32	1	6.35 mm	0.25 in
Bourns Inc. 91A1A-B24-D20L	100 kOhms	Slotted	1000 ppm/°C	1	0.687 in	0.625 in	17.45 mm	15.88 mm	PC Pins	Logarithmic	19.05 mm	0.75 in	20 %	300 ░	Side Adjustment	Conductive Plastic	0.5 W	3/8-32	1	6.35 mm	0.25 in	0.5 W
Bourns Inc. 91A1A-B28-E17L		Slotted	1000 ppm/°C	1	0.687 in	0.625 in	17.45 mm	15.88 mm	PC Pins	Linear	22.23 mm	0.875 in	10 %	300 ░	Side Adjustment	Conductive Plastic	1 W	3/8-32	1	6.35 mm	0.25 in		25k
Bourns Inc. 91A1A-B24-D13L	5 kOhms	Slotted	1000 ppm/°C	1	0.687 in	0.625 in	17.45 mm	15.88 mm	PC Pins	Logarithmic	19.05 mm	0.75 in	20 %	300 ░	Side Adjustment	Conductive Plastic	0.5 W	3/8-32	1	6.35 mm	0.25 in	0.5 W
Bourns Inc. 91A1A-B28-B10L	1 kOhms	Slotted	1000 ppm/°C	1	0.687 in	0.625 in	17.45 mm	15.88 mm	PC Pins	Linear	22.23 mm	0.875 in	20 %	300 ░	Side Adjustment	Conductive Plastic	1 W	3/8-32	1	6.35 mm	0.25 in
Bourns Inc. 91A1A-B28-B23L	500 kOhms	Slotted	1000 ppm/°C	1	0.687 in	0.625 in	17.45 mm	15.88 mm	PC Pins	Linear	22.23 mm	0.875 in	20 %	300 ░	Side Adjustment	Conductive Plastic	1 W	3/8-32	1	6.35 mm	0.25 in
Bourns Inc. 91A1A-B20-B15L		Slotted	1000 ppm/°C	1	0.687 in	0.625 in	17.45 mm	15.88 mm	PC Pins	Linear			20 %	300 ░	Side Adjustment	Conductive Plastic	1 W	3/8-32	1	6.35 mm	0.25 in		10k	15.88 mm	0.625 in
Bourns Inc. 91A1A-B28-D15L		Slotted	1000 ppm/°C	1	0.687 in	0.625 in	17.45 mm	15.88 mm	PC Pins	Logarithmic	22.23 mm	0.875 in	20 %	300 ░	Side Adjustment	Conductive Plastic	0.5 W	3/8-32	1	6.35 mm	0.25 in	0.5 W	10k
Bourns Inc. 91A1A-B24-B13L	5 kOhms	Slotted	1000 ppm/°C	1	0.687 in	0.625 in	17.45 mm	15.88 mm	PC Pins	Linear	19.05 mm	0.75 in	20 %	300 ░	Side Adjustment	Conductive Plastic	1 W	3/8-32	1	6.35 mm	0.25 in
Bourns Inc. 91A1A-B28-A18L	50 kOhms	Slotted	150 ppm/°C	1	0.687 in	0.625 in	17.45 mm	15.88 mm	PC Pins	Linear	22.23 mm	0.875 in	10 %	300 ░	Side Adjustment	Cermet	2 W	3/8-32	1	6.35 mm	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.76
		10	$ 7.83
		25	$ 7.17
		40	$ 6.85
		80	$ 6.40
		230	$ 5.77
		440	$ 5.42
		945	$ 5.02

Description

General part information

91A1A Series

25k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 1W PC Pins
