EC4SAW-24S12N

Active

Cincon Electronics Co. LTD

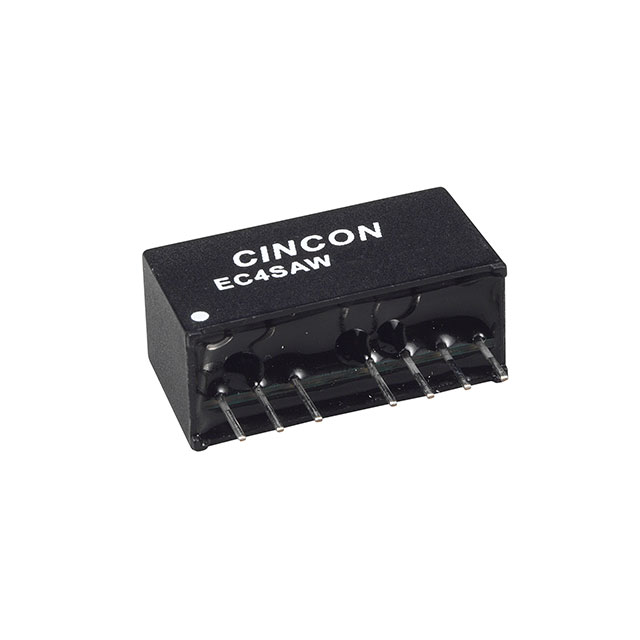

DC DC CONVERTER 12V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EC4SAW-24S12N

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 12V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC4SAW-24S12N

Applications	ITE (Commercial)
Approval Agency	CE
Control Features	Active Low, Enable
Current - Output (Max) [Max]	500 mA
Efficiency	88 %
Features	Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SIP Module
Package / Case	7 Leads
Power (Watts)	6 W
Size / Dimension [x]	21.8 mm
Size / Dimension [x]	0.86 in
Size / Dimension [y]	0.36 "
Size / Dimension [y]	9.2 mm
Size / Dimension [z]	0.44 "
Size / Dimension [z]	11.1 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

EC4SAW Series

Part	Approval Agency	Features	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Type	Voltage - Input (Min) [Min]	Voltage - Isolation	Power (Watts)	Voltage - Input (Max) [Max]	Number of Outputs	Applications	Current - Output (Max) [Max]	Voltage - Output 1	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Package / Case	Package / Case	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Cincon Electronics Co. LTD EC4SAW-48S15N	CE	Remote On/Off SCP	Active Low Enable	85 °C	-40 °C	88 %	Isolated Module	18 V	1.5 kV	6 W	75 V	1	ITE (Commercial)	400 mA	15 V	Through Hole	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	8-SIP Module	7 Leads
Cincon Electronics Co. LTD EC4SAW-24S12N	CE	Remote On/Off SCP	Active Low Enable	85 °C	-40 °C	88 %	Isolated Module	9 V	1.5 kV	6 W	36 V	1	ITE (Commercial)	500 mA	12 V	Through Hole	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	8-SIP Module	7 Leads
Cincon Electronics Co. LTD EC4SAW-48S05N	CE	Remote On/Off SCP	Active Low Enable	85 °C	-40 °C	85 %	Isolated Module	18 V	1.5 kV	6 W	75 V	1	ITE (Commercial)	1.2 A	5 V	Through Hole	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	8-SIP Module	7 Leads
Cincon Electronics Co. LTD EC4SAW-24D15N	CE	Remote On/Off SCP	Active Low Enable	85 °C	-40 °C	88 %	Isolated Module	9 V	1.5 kV	6 W	36 V	2	ITE (Commercial)		15 V	Through Hole	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	8-SIP Module	7 Leads	-15 V
Cincon Electronics Co. LTD EC4SAW-48D12N	CE	Remote On/Off SCP	Active Low Enable	85 °C	-40 °C	89 %	Isolated Module	18 V	1.5 kV	6 W	75 V	2	ITE (Commercial)		12 V	Through Hole	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	8-SIP Module	7 Leads	-12 V	250 mA	250 mA
Cincon Electronics Co. LTD EC4SAW-24S33N	CE	Remote On/Off SCP	Active Low Enable	85 °C	-40 °C		Isolated Module	9 V	1.5 kV	5 W	36 V	1	ITE (Commercial)	1.5 A	3.3 V	Through Hole	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	8-SIP Module	7 Leads
Cincon Electronics Co. LTD EC4SAW-24D12N	CE	Remote On/Off SCP	Active Low Enable	85 °C	-40 °C	88 %	Isolated Module	9 V	1.5 kV	6 W	36 V	2	ITE (Commercial)		12 V	Through Hole	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	8-SIP Module	7 Leads	-12 V	250 mA	250 mA
Cincon Electronics Co. LTD EC4SAW-48D15N	CE	Remote On/Off SCP	Active Low Enable	85 °C	-40 °C	89 %	Isolated Module	18 V	1.5 kV	6 W	75 V	2	ITE (Commercial)		15 V	Through Hole	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	8-SIP Module	7 Leads	-15 V
Cincon Electronics Co. LTD EC4SAW-48D05N	CE	Remote On/Off SCP	Active Low Enable	85 °C	-40 °C	85 %	Isolated Module	18 V	1.5 kV	6 W	75 V	2	ITE (Commercial)	600 mA	5 V	Through Hole	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	8-SIP Module	7 Leads	-5 V
Cincon Electronics Co. LTD EC4SAW-48D12HN	CE	Remote On/Off	Active Floating Enable	85 °C	-40 °C	89 %	Isolated Module	18 V	1.5 kV	6 W	75 V	2	ITE (Commercial)		12 V	Through Hole	21.8 mm	0.36 "	9.2 mm	0.86 in	0.44 "	11.1 mm	8-SIP Module	7 Leads	-12 V	250 mA	250 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 15.50
		5	$ 14.61
		10	$ 14.25
		25	$ 13.78
		50	$ 13.43
		100	$ 13.09
		250	$ 12.66
		500	$ 12.34

Description

General part information

EC4SAW Series

Isolated Module DC DC Converter 1 Output 12V 500mA 9V - 36V Input
