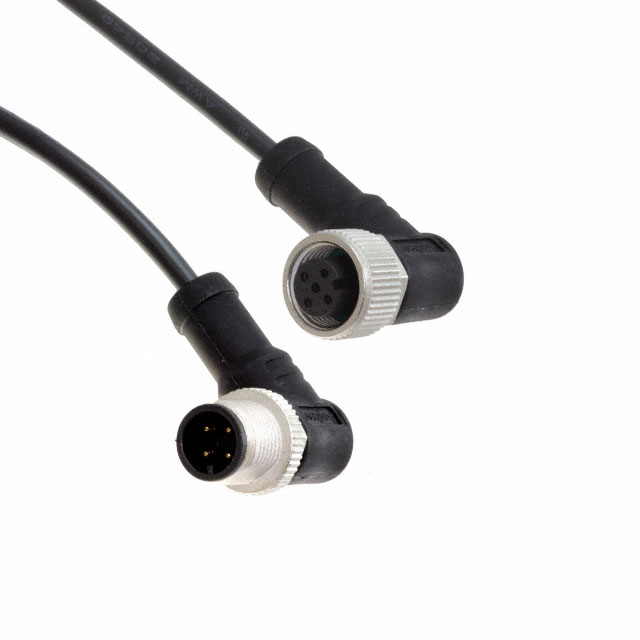

M12A04MR-12AFR-SBA05

Active

Amphenol LTW

CBL 4POS MALE TO FMALE 1.64'

Search across all available documentation for this part.

Active

Amphenol LTW

CBL 4POS MALE TO FMALE 1.64'

Technical Specifications

Parameters and characteristics for this part

Specification	M12A04MR-12AFR-SBA05

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug, Right Angle
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

Part	Color	Ingress Protection	1st Connector Shell Size - Insert	2nd Connector Mounting Type	1st Connector Mounting Type	Cable Material	Shielding	1st Connector Orientation	2nd Connector Number of Positions	Length [x]	Length [x]	2nd Connector Shell Size - Insert	1st Connector Number of Positions	1st Connector Type	2nd Connector Gender	Assembly Configuration	Usage	Cable Type	1st Connector Number of Positions Loaded	1st Connector Gender	2nd Connector Number of Positions Loaded	2nd Connector Type
Amphenol LTW M12A04MR-12AFR-SBA05	Black	IP68 IP69K	M12	Free Hanging (In-Line)	Free Hanging (In-Line)	Polyurethane (PUR)	Unshielded	A	4	1.64 ft	500 mm	M12	4	Receptacle Right Angle	Female Sockets	Standard	Industrial Environments	Round	All	Male Pins	All	Plug Right Angle
Amphenol LTW M12A04MR-12AFR-SB001	Black	IP68 IP69K	M12	Free Hanging (In-Line)	Free Hanging (In-Line)	Polyurethane (PUR)	Unshielded	A	4	3.28 ft	1 m	M12	4	Receptacle Right Angle	Female Sockets	Standard	Industrial Environments	Round	All	Male Pins	All	Plug Right Angle
Amphenol LTW M12A04MR-12AFR-SD001	Black	IP68 IP69K	M12	Free Hanging (In-Line)	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	Unshielded	A	4	3.28 ft	1 m	M12	4	Receptacle Right Angle	Female Sockets	Standard	Industrial Environments	Round	All	Male Pins	All	Plug Right Angle
Amphenol LTW M12A04MR-12AMR-SD001	Black	IP68 IP69K	M12	Free Hanging (In-Line)	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	Unshielded	A	4	3.28 ft	1 m	M12	4	Receptacle Right Angle		Standard	Industrial Environments	Round	All	Male Pins	All	Receptacle Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 1.64' (500.00mm)
