RB546A1100-136

Active

E-Switch

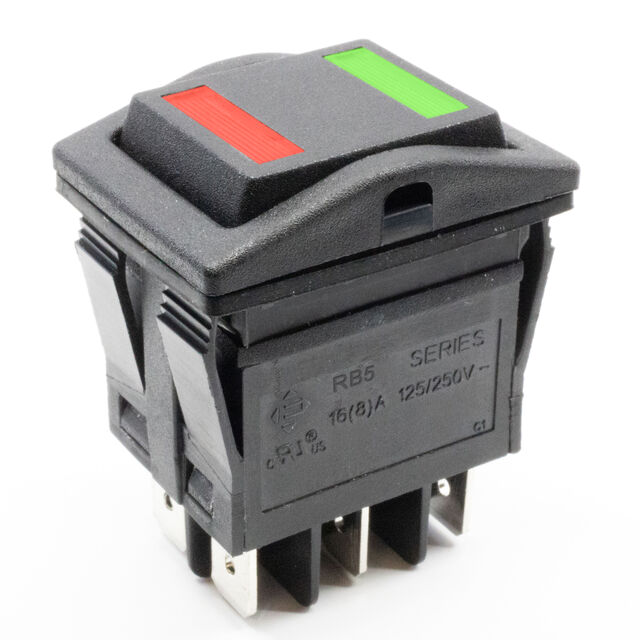

ROCKER SWITCH, IP67, 125V RED/GREEN LED, (ON)-OFF-(ON), DPDT, ILLUMINATED, PANEL MOUNT, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RB546A1100-136

Active

E-Switch

ROCKER SWITCH, IP67, 125V RED/GREEN LED, (ON)-OFF-(ON), DPDT, ILLUMINATED, PANEL MOUNT, BLACK

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RB546A1100-136

Actuator Marking	No Marking
Actuator Type	Flat - Illuminated
Approval Agency	ENEC15, cULus
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating (Amps)	16 A
Electrical Life	10000 Cycles
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	125 VAC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30.23 mm
Panel Cutout Dimensions [y]	22.1 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	125 VDC

rb5 Series

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Color - Actuator/Cap	Termination Style	Actuator Type	Actuator Marking	Illumination Voltage (Nominal)	Circuit	Mounting Type	Switch Function	Approval Agency	Electrical Life	Illumination Type, Color	Voltage Rating - DC	Ingress Protection	Current Rating (Amps)
E-Switch RB546A1100-136	30.23 mm	22.1 mm	White	Quick Connect - 0.250" (6.3mm)	Flat - Illuminated	No Marking	125 VAC	DPDT	Panel Mount Snap-In	Mom-Off-Mom	cULus ENEC15	10000 Cycles	Green/Red LED	125 VDC	IP67 - Dust Tight Waterproof	16 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.07
		10	$ 8.15
		25	$ 7.78
		50	$ 7.44
		100	$ 7.15
		250	$ 6.77
		500	$ 6.27
		1000	$ 5.98

Description

General part information

rb5 Series

RB546A1100-136 is a RB5 series rocker switch. Application / markets includes commercial appliances, industrial controls, floor care appliances, instrumentation, medical/dental, electrical housewares.
