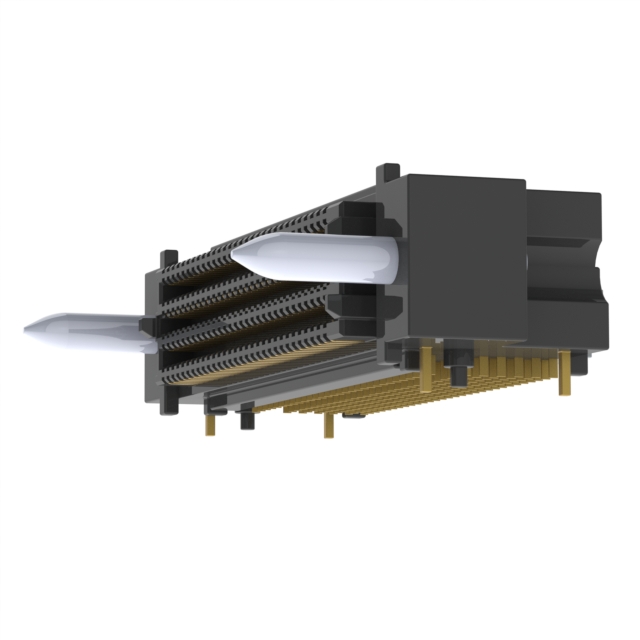

SEAM-30-01-L-08-2-RA-GP-K-TR

Active

Samtec Inc.

CONN HD ARRAY PLUG 240P R/A SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAM-30-01-L-08-2-RA-GP-K-TR

Connector Type	High Density Array, Male
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Mating Flange, Pick and Place, Board Guide
Height Above Board	0.411 in
Height Above Board	10.45 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions	240
Number of Rows	8
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

SEAM-30 Series

...

Part	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Connector Type	Mounting Type	Features	Number of Positions	Height Above Board	Height Above Board	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Rows
Samtec Inc. SEAM-30-11.0-S-04-2-A-K-TR	0.05 in	1.27 mm	0.76 Ám	30 Áin	16 mm 17 mm 17.5 mm 18.5 mm	High Density Array Male	Surface Mount	Board Guide Pick and Place	120	0.575 in	14.61 mm	Gold
Samtec Inc. SEAM-30-07.0-L-06-1-A-K-TR	0.05 in	1.27 mm	0.25 Ám	10 Áin	12 mm 13 mm 13.5 mm 14.5 mm 15 mm	High Density Array Male	Surface Mount	Board Guide Pick and Place	180			Gold	0.417 in	10.6 mm	6
Samtec Inc. SEAM-30-11.0-S-04-1-A-K-TR	0.05 in	1.27 mm	0.76 Ám	30 Áin		High Density Array Male	Surface Mount	Board Guide Pick and Place	120	0.575 in	14.61 mm	Gold
Samtec Inc. SEAM-30-03.5-L-08-2-A-K-TR	0.05 in	1.27 mm	0.25 Ám	10 Áin	8.5 mm 9.5 mm 10 mm 11 mm	High Density Array Male	Surface Mount	Board Guide Pick and Place	240			Gold	0.24 "	6.1 mm	8
Samtec Inc. SEAM-30-01-S-04-2-RA-K-TR	0.05 in	1.27 mm	0.76 Ám	30 Áin		High Density Array Male	Surface Mount Right Angle	Board Guide Pick and Place	120	0.211 in	5.35 mm	Gold
Samtec Inc. SEAM-30-07.0-S-06-1-A-K-TR	0.05 in	1.27 mm	0.76 Ám	30 Áin	12 mm 13 mm 13.5 mm 14.5 mm 15 mm	High Density Array Male	Surface Mount	Board Guide Pick and Place	180			Gold	0.417 in	10.6 mm	6
Samtec Inc. SEAM-30-01-S-06-1-RA-K-TR	0.05 in	1.27 mm	0.76 Ám	30 Áin		High Density Array Male	Surface Mount Right Angle	Board Guide Pick and Place	180	0.311 in	7.9 mm	Gold			6
Samtec Inc. SEAM-30-01-S-08-1-RA-TR	0.05 in	1.27 mm	0.76 Ám	30 Áin		High Density Array Male	Surface Mount Right Angle	Board Guide	240	0.411 in	10.45 mm	Gold			8
Samtec Inc. SEAM-30-01-L-08-2-RA-GP-K-TR	0.05 in	1.27 mm	0.25 Ám	10 Áin		High Density Array Male	Surface Mount Right Angle	Board Guide Mating Flange Pick and Place	240	0.411 in	10.45 mm	Gold			8
Samtec Inc. SEAM-30-01-S-06-1-RA-GP-K-TR	0.05 in	1.27 mm	0.76 Ám	30 Áin		High Density Array Male	Surface Mount Right Angle	Board Guide Mating Flange Pick and Place	180	0.311 in	7.9 mm	Gold			6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	50	$ 27.31

Description

General part information

SEAM-30 Series

240 Position Connector High Density Array, Male Surface Mount, Right Angle Gold
