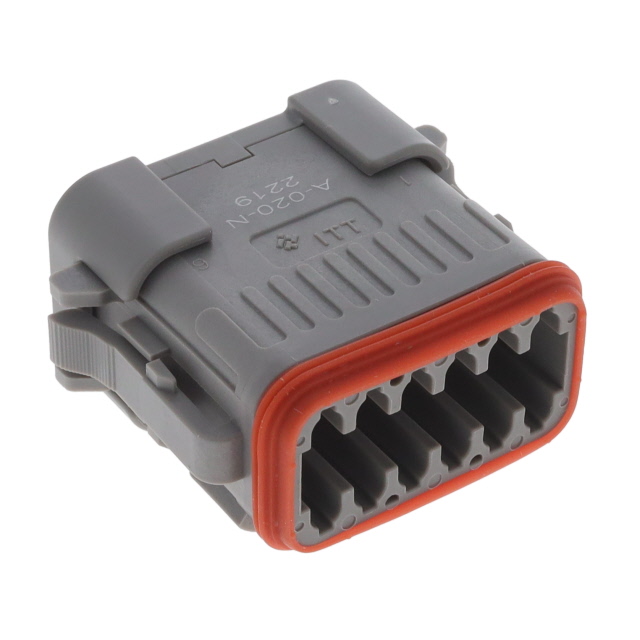

IT06-12SA-020-N

Active

ITT Cannon, LLC

CONN PLUG HSG 12POS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG HSG 12POS

Technical Specifications

Parameters and characteristics for this part

Specification	IT06-12SA-020-N

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	IP69K, IP67, Cap (Cover), Sealed, IP68
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Color	Mounting Type	Features	Fastening Type	Insulation Material	Contact Type	Number of Positions	Contact Termination	Connector Type
ITT Cannon, LLC IT06-12SA-020-N	-55 °C	125 °C	2	Gray	Free Hanging (In-Line)	Cap (Cover) IP67 IP68 IP69K Sealed	Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	12	Crimp	Plug
ITT Cannon, LLC IT06-12SA-022	-55 °C	125 °C	2	Gray	Free Hanging (In-Line)		Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	12	Crimp	Plug
ITT Cannon, LLC IT06-12SA-024	-55 °C	125 °C	2	Black	Free Hanging (In-Line)	Cap (Cover) IP67 IP68 IP69K Sealed	Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	12	Crimp	Plug
ITT Cannon, LLC IT06-12SA-020	-55 °C	125 °C	2	Gray	Free Hanging (In-Line)	Cap (Cover) IP67 IP68 IP69K Sealed	Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	12	Crimp	Plug
ITT Cannon, LLC IT06-12SA-026-N	-55 °C	125 °C	2	Black	Free Hanging (In-Line)		Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	12	Crimp	Plug
ITT Cannon, LLC IT06-12SA-026	-55 °C	125 °C	2	Black	Free Hanging (In-Line)		Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	12	Crimp	Plug
ITT Cannon, LLC IT06-12SA-022-N	-55 °C	125 °C	2	Gray	Free Hanging (In-Line)		Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	12	Crimp	Plug
ITT Cannon, LLC IT06-12SA-024-N	-55 °C	125 °C	2	Black	Free Hanging (In-Line)	Cap (Cover) IP67 IP68 IP69K Sealed	Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	12	Crimp	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Plug Gray
