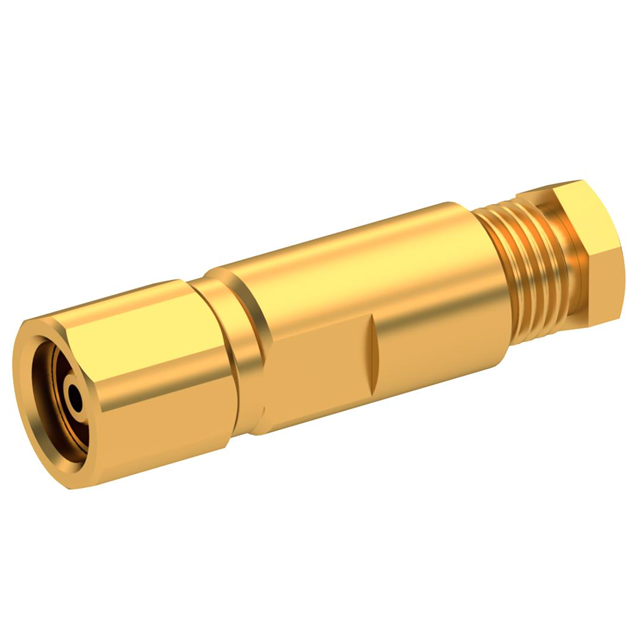

Specification	R112003000

Body Finish	Gold
Body Material	Brass
Cable Group	196, RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	10 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Clamp
Voltage Rating	250 V

R11200 Series

Part	Contact Termination	Center Contact Material	Connector Style	Impedance	Connector Type	Shield Termination	Number of Ports	Fastening Type	Housing Color	Frequency - Max	Mounting Type	Cable Group	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Body Material	Center Contact Plating	Voltage Rating	Mating Cycles	Dielectric Material
Radiall USA, Inc. R112003000	Solder	Beryllium Copper	SMC	50 Ohm	Female Socket Plug	Clamp	1	Threaded	Gold	10 GHz	Free Hanging (In-Line)	196 RG-178	-55 °C	100 °C	Gold	Brass	Gold	250 V	500 cycles	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R112005000	Solder	Beryllium Copper	SMC	50 Ohm	Female Socket Plug	Clamp	1	Threaded	Gold	10 GHz	Free Hanging (In-Line)	187 188 316 RG-179	-65 °C	165 °C	Gold	Brass	Gold	335 V	500 cycles	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R112009000	Solder	Beryllium Copper	SMC	50 Ohm	Female Socket Plug	Clamp	1	Threaded	Gold	10 GHz	Free Hanging (In-Line)	195 RG-180	-65 °C	165 °C	Gold	Brass	Gold	335 V	500 cycles	Polytetrafluoroethylene (PTFE)
