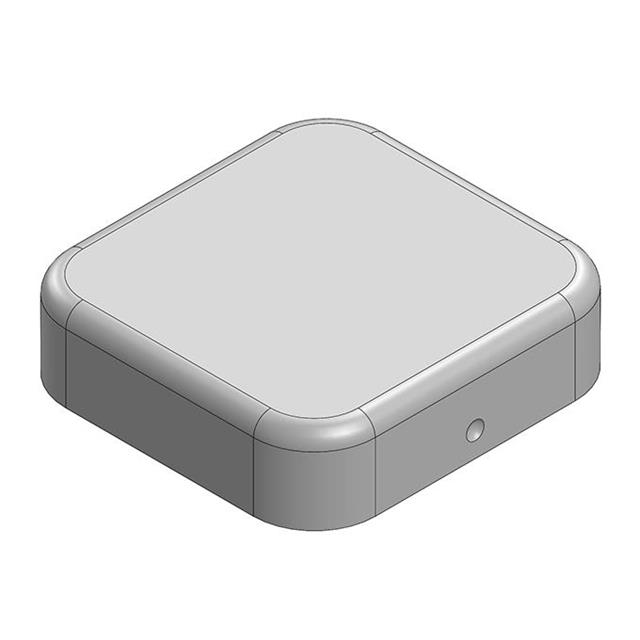

MS128-10C-NS
ActiveMasach Tech Ltd.
RF SHIELD 0.500X0.520" SNAP FIT
Deep-Dive with AI
Search across all available documentation for this part.
MS128-10C-NS
ActiveMasach Tech Ltd.
RF SHIELD 0.500X0.520" SNAP FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS128-10C-NS | MS128 Series |
|---|---|---|
| Height - Overall [z] | 3.5 mm | 3.5 - 7.5 mm |
| Height - Overall [z] | 0.138 in | 0.138 - 0.295 " |
| Length - Overall | 13.2 mm | 13.2 mm |
| Length - Overall | 0.52 " | 0.52 - 12.8 mm |
| Length - Overall | - | 0.504 in |
| Mounting Type | Snap Fit | Solder, Snap Fit |
| Type | Cover | Shield, 1-Piece, Cover, Frame |
| Ventilation | Non-Vented | Non-Vented |
| Width - Overall [x] | 0.5 in | 0.484 - 0.5 in |
| Width - Overall [x] | 12.7 mm | 12.3 - 12.7 mm |
MS128 Series
RF SHIELD 0.484"X0.504" SOLDER
| Part | Width - Overall [x] | Width - Overall [x] | Length - Overall | Length - Overall | Height - Overall [z] | Height - Overall [z] | Mounting Type | Ventilation | Type | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|
Masach Tech Ltd. MS128-10S-NS | 12.3 mm | 0.484 in | 12.8 mm | 0.504 in | 7.5 mm | 0.295 " | Solder | Non-Vented | Shield, 1-Piece | |
Masach Tech Ltd. MS128-10C | 12.7 mm | 0.5 in | 0.52 " | 3.5 mm | 0.138 in | Snap Fit | Non-Vented | Cover | 13.2 mm | |
Masach Tech Ltd. MS128-10F-NS | 12.3 mm | 0.484 in | 12.8 mm | 0.504 in | 7.5 mm | 0.295 " | Solder | Frame | ||
Masach Tech Ltd. MS128-10F | 12.3 mm | 0.484 in | 12.8 mm | 0.504 in | 7.5 mm | 0.295 " | Solder | Frame | ||
Masach Tech Ltd. MS128-10C-NS | 12.7 mm | 0.5 in | 0.52 " | 3.5 mm | 0.138 in | Snap Fit | Non-Vented | Cover | 13.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.70 | |
| 10 | $ 1.74 | |||
| 25 | $ 1.49 | |||
| 80 | $ 1.25 | |||
| 230 | $ 1.09 | |||
| 440 | $ 1.01 | |||
| 945 | $ 0.93 | |||
| 2400 | $ 0.85 | |||
| 4900 | $ 0.80 | |||
Description
General part information
MS128 Series
RF Shield Cover 0.500" (12.70mm) X 0.520" (13.20mm) Non-Vented Snap Fit
Documents
Technical documentation and resources
