MS128-10F

Active

Masach Tech Ltd.

RF SHIELD 0.484"X0.504" SOLDER

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.484"X0.504" SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.484"X0.504" SOLDER

Part	Width - Overall [x]	Width - Overall [x]	Length - Overall	Length - Overall	Height - Overall [z]	Height - Overall [z]	Mounting Type	Ventilation	Type	Length - Overall
Masach Tech Ltd. MS128-10S-NS	12.3 mm	0.484 in	12.8 mm	0.504 in	7.5 mm	0.295 "	Solder	Non-Vented	Shield, 1-Piece
Masach Tech Ltd. MS128-10C	12.7 mm	0.5 in	0.52 "		3.5 mm	0.138 in	Snap Fit	Non-Vented	Cover	13.2 mm
Masach Tech Ltd. MS128-10F-NS	12.3 mm	0.484 in	12.8 mm	0.504 in	7.5 mm	0.295 "	Solder		Frame
Masach Tech Ltd. MS128-10F	12.3 mm	0.484 in	12.8 mm	0.504 in	7.5 mm	0.295 "	Solder		Frame
Masach Tech Ltd. MS128-10C-NS	12.7 mm	0.5 in	0.52 "		3.5 mm	0.138 in	Snap Fit	Non-Vented	Cover	13.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

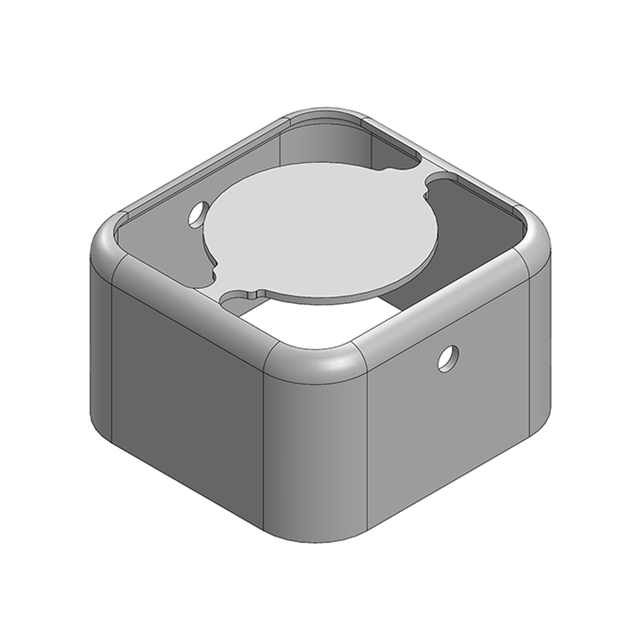

RF Shield Frame 0.484" (12.30mm) X 0.504" (12.80mm) Solder
