General part information

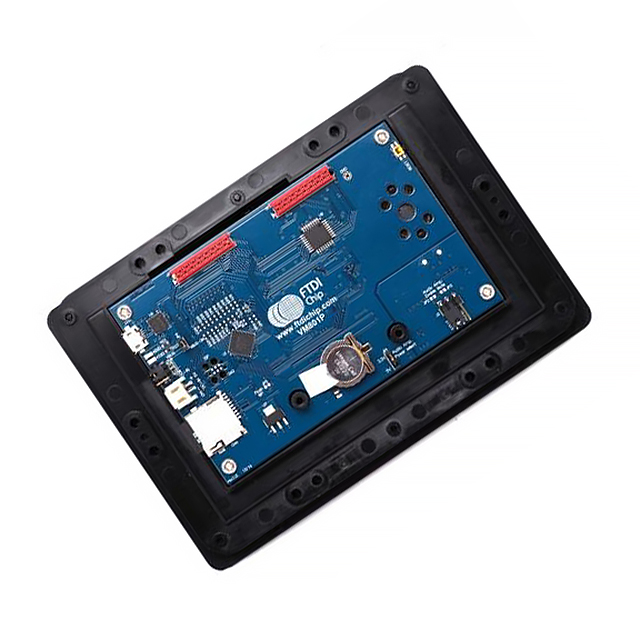

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, SPI, USB 4.3" (109.22mm) 480 x 272
Technical documentation and resources
Parameters and characteristics for this part
| Specification | VM801P43A-BK |
|---|---|
| Backlight | LED - White |
| Controller Type | FT801 |
| Diagonal Screen Size | 109.22 mm |
| Diagonal Screen Size | 4.3 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels [x] | 480 |
| Dot Pixels [y] | 272 |
| Graphics Color | Green, Red, Blue |
| Interface | SPI, I2C, USB |
| Touchscreen | Capacitive |
| Viewing Area [x] | 111.5 mm |
| Viewing Area [y] | 73.5 mm |
GRAPHIC DISPLAY TFT RGB 4.3"
| Part | Controller Type | Graphics Color | Diagonal Screen Size | Diagonal Screen Size | Viewing Area [x] | Viewing Area [y] | Backlight | Touchscreen | Display Mode | Dot Pixels [y] | Dot Pixels [x] | Display Type | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bridgetek Pte Ltd. VM801P43A-BK | FT801 | Blue, Green, Red | 109.22 mm | 4.3 in | 111.5 mm | 73.5 mm | LED - White | Capacitive | Transmissive | 272 | 480 | TFT - Color | I2C, SPI, USB |
