QSE-040-01-F-D-A-TR

Active

Samtec Inc.

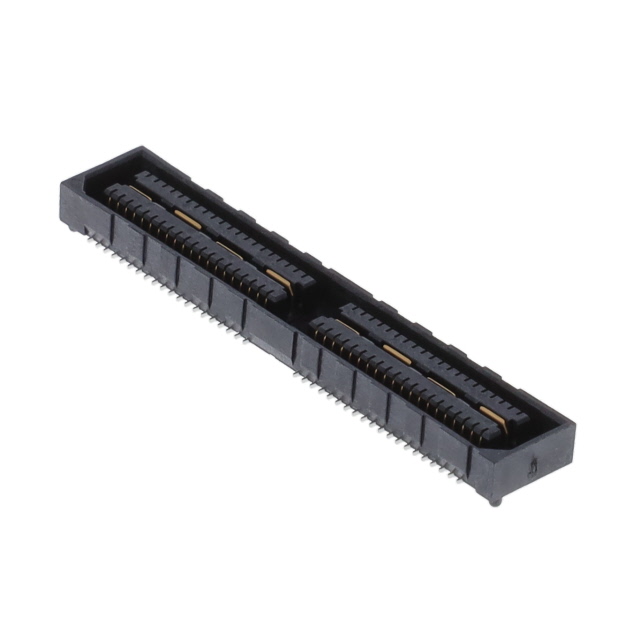

CONN RCPT 80POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQSE Series Other Related Documents 03 QSE-014-01-C-D-DP-A-K Datasheet 02 +2

QSE-040-01-F-D-A-TR

Active

Samtec Inc.

CONN RCPT 80POS SMD GOLD

Deep-Dive with AI

DocumentsQSE Series Other Related Documents 03 QSE-014-01-C-D-DP-A-K Datasheet 02 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSE-040-01-F-D-A-TR

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm, 25 mm, 8 mm, 16 mm, 11 mm, 14 mm, 19 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

QSE-040 Series

Part	Number of Positions	Mated Stacking Heights	Height Above Board	Height Above Board	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Features	Number of Rows	Pitch [x]	Pitch [x]
Samtec Inc. QSE-040-11-L-D-A-K-TR	80	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in	Center Strip Contacts Receptacle	Gold	10 Áin	0.25 Ám	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	2	0.8 mm	0.031 in
Samtec Inc. QSE-040-01-F-D-A-L-K-TR	80	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in	Center Strip Contacts Receptacle	Gold	3 Áin	0.076 Ám	Surface Mount	Board Guide Ground Bus (Plane) Latch Lock Pick and Place	2	0.8 mm	0.031 in
Samtec Inc. QSE-040-01-F-D-A-TR	80	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in	Center Strip Contacts Receptacle	Gold	3 Áin	0.076 Ám	Surface Mount		2	0.8 mm	0.031 in
Samtec Inc. QSE-040-01-H-D-A	80	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in	Center Strip Contacts Receptacle	Gold	30 Áin	0.76 Ám	Surface Mount		2	0.8 mm	0.031 in
Samtec Inc. QSE-040-01-F-D-A-FL	80	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in	Center Strip Contacts Receptacle	Gold	3 Áin	0.076 Ám	Surface Mount	Board Guide Friction Lock Ground Bus (Plane)	2	0.8 mm	0.031 in
Samtec Inc. QSE-040-01-H-D-EM2-GP	80				Center Strip Contacts Receptacle	Gold	30 Áin	0.76 Ám	Board Edge Straddle Mount	Ground Bus (Plane) Mating Flange	2	0.8 mm	0.031 in
Samtec Inc. QSE-040-01-F-D-LC	80	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in	Center Strip Contacts Receptacle	Gold	3 Áin	0.076 Ám	Surface Mount	Board Lock Ground Bus (Plane)	2	0.8 mm	0.031 in
Samtec Inc. QSE-040-01-L-D-A-RT1-K	80	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in	Center Strip Contacts Receptacle	Gold	10 Áin	0.25 Ám	Surface Mount	Board Guide Ground Bus (Plane) Mounting Flange Pick and Place	2	0.8 mm	0.031 in
Samtec Inc. QSE-040-01-S-D-A-K-TR	80	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in	Center Strip Contacts Receptacle	Gold	30 Áin	0.76 Ám	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	2	0.8 mm	0.031 in
Samtec Inc. QSE-040-01-C-D-A	80	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in	Center Strip Contacts Receptacle	Gold	50 µin	1.27 µm	Surface Mount		2	0.8 mm	0.031 in
