9614 060100

Active

Belden Inc.

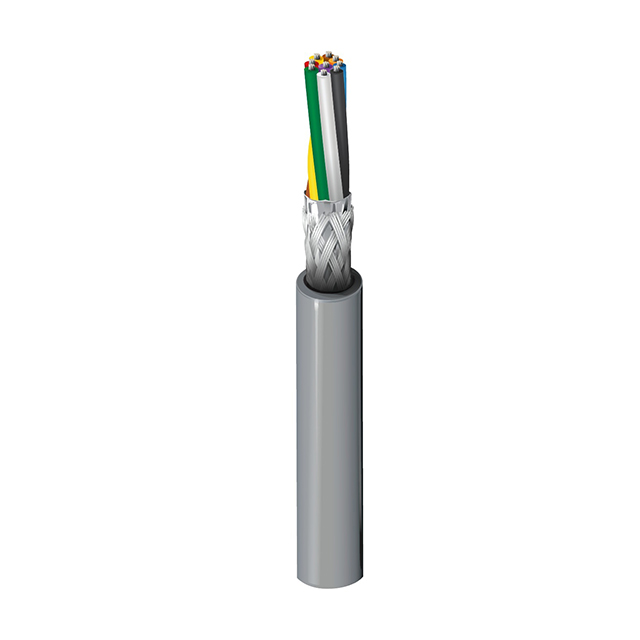

CABLE 9COND 24AWG CHROME SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 9COND 24AWG CHROME SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9614 060100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.255 "
Jacket (Insulation) Diameter [diameter]	6.48 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Shield Type	Conductor Material	Conductor Insulation	Length [x]	Length [x]	Jacket (Insulation) Material	Wire Gauge	Usage	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Cable Type	Number of Conductors	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Ratings	Length	Length
Belden Inc. 9614 060100	Braid Foil	Copper Tinned	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	Poly-Vinyl Chloride (PVC)	24 AWG	Computer	Chrome	-30 ░C	80 C	Aluminum Copper Tinned	Multi-Conductor	9	65 % 100 %	0.889 mm	0.035 in	0.255 "	6.48 mm	32 AWG	7
Belden Inc. 9614 0601000	Braid Foil	Copper Tinned	Poly-Vinyl Chloride (PVC)			Poly-Vinyl Chloride (PVC)	24 AWG	Computer	Chrome	-30 ░C	80 C	Aluminum Copper Tinned	Multi-Conductor	9	65 % 100 %	0.889 mm	0.035 in	0.255 "	6.48 mm	32 AWG	7	300 V	UL Style 2464	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Braid 100.0' (30.5m)
