NDS6D2405C
ActiveMurata Power Solutions Inc.

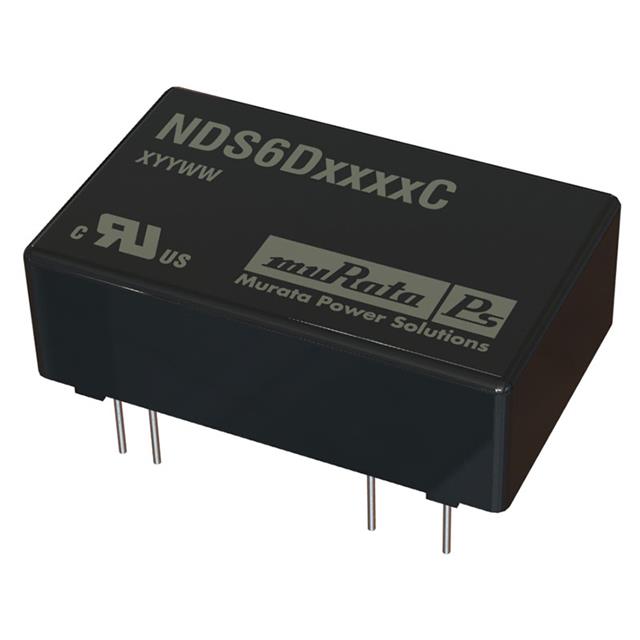

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 2:1, 6 W, 2 OUTPUT, 5 V, 600 MA
Deep-Dive with AI
Search across all available documentation for this part.
NDS6D2405C
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 2:1, 6 W, 2 OUTPUT, 5 V, 600 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NDS6D2405C | NDS6D24 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) | - | 250 mA |
| Current - Output (Max) | - | 250 mA |
| Current - Output (Max) [Max] | 600 mA | 600 mA |
| Efficiency | 83 % | 83 - 87.5 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 24-DIP Module, 8 Leads | 24-DIP Module, 8 Leads, 24-DIP Module |
| Package / Case | - | 9 PC Pad |
| Power (Watts) | 6 W | 6 W |
| Size / Dimension [x] | 32 mm | 32 mm |
| Size / Dimension [x] | 1.26 in | 1.26 in |
| Size / Dimension [y] | 20 mm | 20 mm |
| Size / Dimension [y] | 0.79 " | 0.79 " |
| Size / Dimension [z] | 10 mm | 10 mm |
| Size / Dimension [z] | 0.39 in | 0.39 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 V |
| Voltage - Input (Min) [Min] | 18 V | 18 V |
| Voltage - Isolation | 1.5 kV | 1.5 kV |
| Voltage - Output 1 | - | 12 - 15 V |
| Voltage - Output 1 [Max] | 12 V | 12 V |
| Voltage - Output 1 [Min] | 5 V | 5 V |
| Voltage - Output 2 | -5 V | -15 - -5 V |
NDS6D24 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 2:1, 6 W, 2 OUTPUT, 15 V, 200 MA
| Part | Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Power (Watts) | Voltage - Output 1 | Efficiency | Voltage - Input (Min) [Min] | Package / Case | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 2 | Number of Outputs | Applications | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Current - Output (Max) | Current - Output (Max) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NDS6D2415C | Isolated Module | 85 °C | -40 °C | Through Hole | 6 W | 15 V | 87.5 % | 18 V | 24-DIP Module, 8 Leads | 1.5 kV | 10 mm | 20 mm | 32 mm | 1.26 in | 0.79 " | 0.39 in | -15 V | 2 | ITE (Commercial) | 36 V | ||||||
Murata Power Solutions Inc. NDS6D2405C | Isolated Module | 85 °C | -40 °C | Through Hole | 6 W | 83 % | 18 V | 24-DIP Module, 8 Leads | 1.5 kV | 10 mm | 20 mm | 32 mm | 1.26 in | 0.79 " | 0.39 in | -5 V | 2 | ITE (Commercial) | 36 V | 600 mA | 12 V | 5 V | ||||
Murata Power Solutions Inc. NDS6D2412C | Isolated Module | 85 °C | -40 °C | Through Hole | 6 W | 12 V | 87 % | 18 V | 24-DIP Module, 8 Leads | 1.5 kV | 10 mm | 20 mm | 32 mm | 1.26 in | 0.79 " | 0.39 in | -12 V | 2 | ITE (Commercial) | 36 V | 250 mA | 250 mA | ||||
Murata Power Solutions Inc. NDS6D2415EC | Isolated Module | 85 °C | -40 °C | Through Hole | 6 W | 15 V | 87.5 % | 18 V | 24-DIP Module | 1.5 kV | 10 mm | 20 mm | 32 mm | 1.26 in | 0.79 " | 0.39 in | -15 V | 2 | ITE (Commercial) | 36 V | 9 PC Pad | |||||
Murata Power Solutions Inc. NDS6D2405EC | Isolated Module | 85 °C | -40 °C | Through Hole | 6 W | 83 % | 18 V | 24-DIP Module | 1.5 kV | 10 mm | 20 mm | 32 mm | 1.26 in | 0.79 " | 0.39 in | -5 V | 2 | ITE (Commercial) | 36 V | 600 mA | 12 V | 5 V | 9 PC Pad |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NDS6D24 Series
Isolated Module DC DC Converter 2 Output 5 ~ 12V -5V 600mA, 600mA 18V - 36V Input
