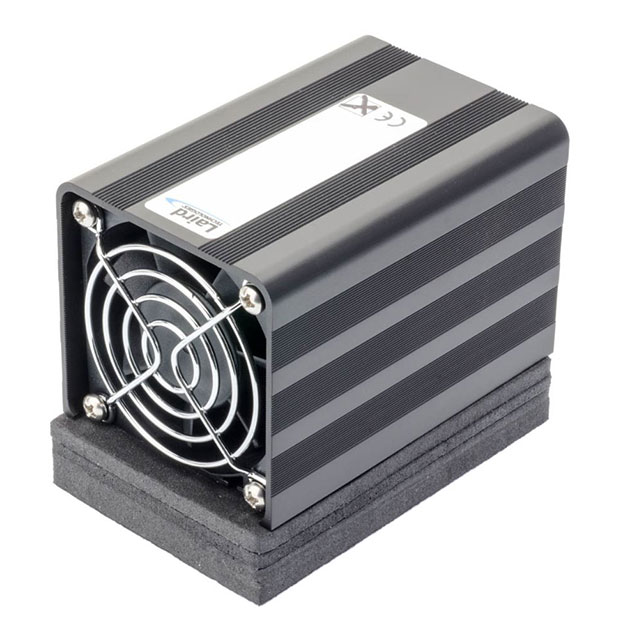

DA-025-12-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-AIR 25W
Deep-Dive with AI
Search across all available documentation for this part.
DA-025-12-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-AIR 25W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DA-025-12-02-00-00 |
|---|---|
| Current | 2.5 A |
| Dimensions - Overall [x] | 97 mm |
| Dimensions - Overall [y] | 65 mm |
| Dimensions - Overall [z] | 67.5 mm |
| Fan Location | Warm Side |
| Heat Transfer Type | Direct to Air |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 25 W |
| Power - Input | 30 W |
| Voltage | 12 V |
| Weight | 816.5 g |
| Weight | 1.8 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 238.33 | |
| 5 | $ 224.06 | |||
| 10 | $ 218.35 | |||
| 25 | $ 211.22 | |||
Description
General part information
DA-025-12 Series
Direct to Air Thermoelectric Assembly 25 W
