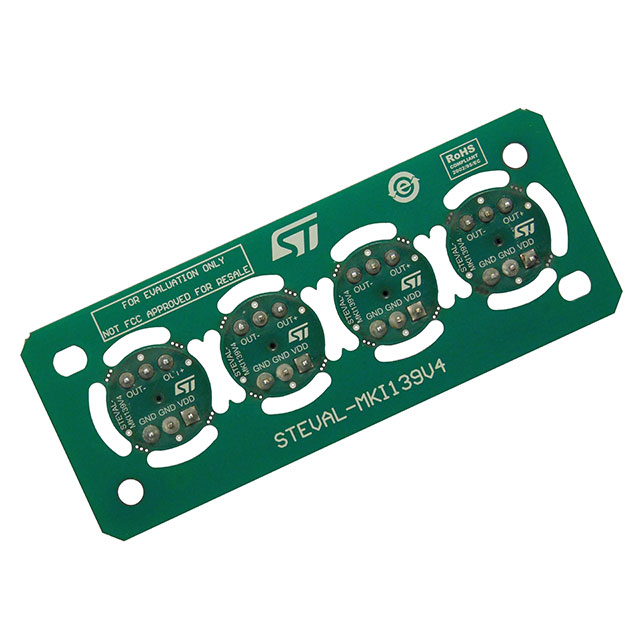

STEVAL-MKI139V4

Obsolete

STMicroelectronics

COUPON BOARD MP23AB01DM

Search across all available documentation for this part.

Obsolete

STMicroelectronics

COUPON BOARD MP23AB01DM

Technical Specifications

Parameters and characteristics for this part

Part	Type	Utilized IC / Part	Contents	Frequency Range [Max]	Frequency Range [Min]	Height (Max) [Max]	Height (Max) [Max]	Voltage Range [Max]	Voltage Range [Min]	S/N Ratio	Direction	Shape	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Port Location	Termination	Output Type	Impedance
STMicroelectronics STEVAL-MKI139V4	Audio	MP23AB01DM	Board(s)
STMicroelectronics MP23AB01DMTR	MEMS (Silicon)			10 kHz	100 Hz	1.08 mm	0.043 in	3.6 V	2.1 V	64 dB	Omnidirectional	Rectangular	3.35 mm	0.098 in	0.132 "	2.5 mm	Bottom	Surface Mount	Analog	400 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.00

General part information

MP23AB01DM Microphone Audio Platform Evaluation Expansion Board
